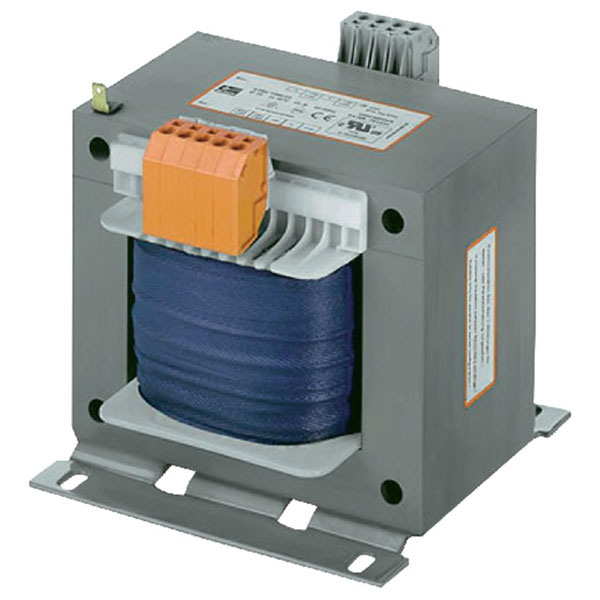

Block STEU 63/24, 63VA Transformer, 230V & 400V to 2 x 12V

The Block STEU 63VA Transformer 230V and 400V to 2 x 12V is a low power on current control, safety, or isolation transformer with tension spring clamps and dual purpose foot plate for screw and rail mounting (TS-35 rail to 250 VA) as per DIN 50022. Designed with a very good switch-on behaviour thanks to reduced starting currents, plus high performance for the volume thanks to compact design, this high quality transformer also has excellent corrosion protection and low noise thanks to BLOCKIMPEX vacuum impregnation.

• 230V and 400V input voltage
• 63-2500VA
• Contact protected screw connection terminals - comply with UVV BGV A3
• Simple mounting - robust metal footplate with oval slots
• Natural cooling

For dimensions see technical data sheet.

Height	88mm
Length	78mm
Power	63VA
Primary Voltage	230 / 400V
Secondary Voltage	2 x 12V
Weight	1.3kg
Width	85mm
