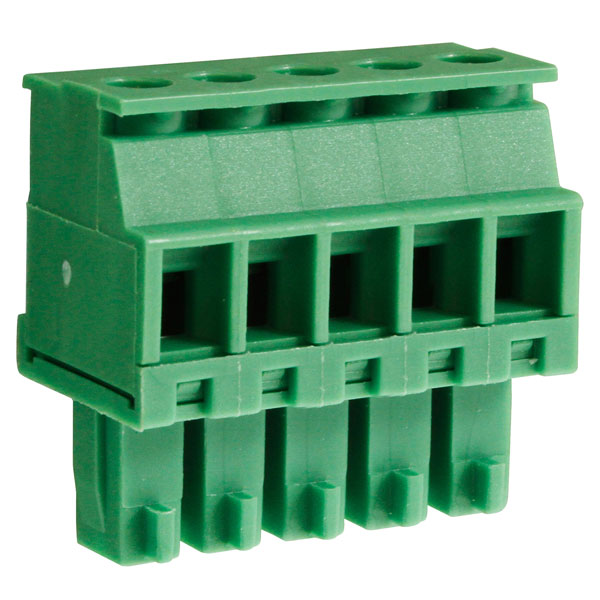

CamBlock Plus CTBP92VE/5S 3.81mm Pluggable Female T/Block Vert 5 Pole

Standard pluggable female vertical rising clamp terminal block with 5 poles from the CamBlock Plus range by CamdenBoss. These green blocks are made from flame retardant polyamide.

• Moulded in UL94-V0 flame-retardant PA66
• Closed headers
• Polarised moulding
• Anti-solder wicking
• Guided pin alignment
• Captive screws
• Wire capacity 1mm² (28 to 16AWG)
• Pitch 3.81mm
• Current rating 8A UL, 10A VDE
• Length 19.8mm
• Width 10.4mm
• Height 19.2mm
• Manufacturer's part CTBP92VE/5S

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Current Rating	8A
Pitch	3.81mm
Wire Gauge	16AWG
Body Style	Vertical
Mounting	PCB
Number of Ways	5
Series	CTBP
Termination	Pluggable rising clamp
