Comet 3550.01.12 Water Pressure Switch 0.8-1.4 Bar 10-15V DC Ceramic

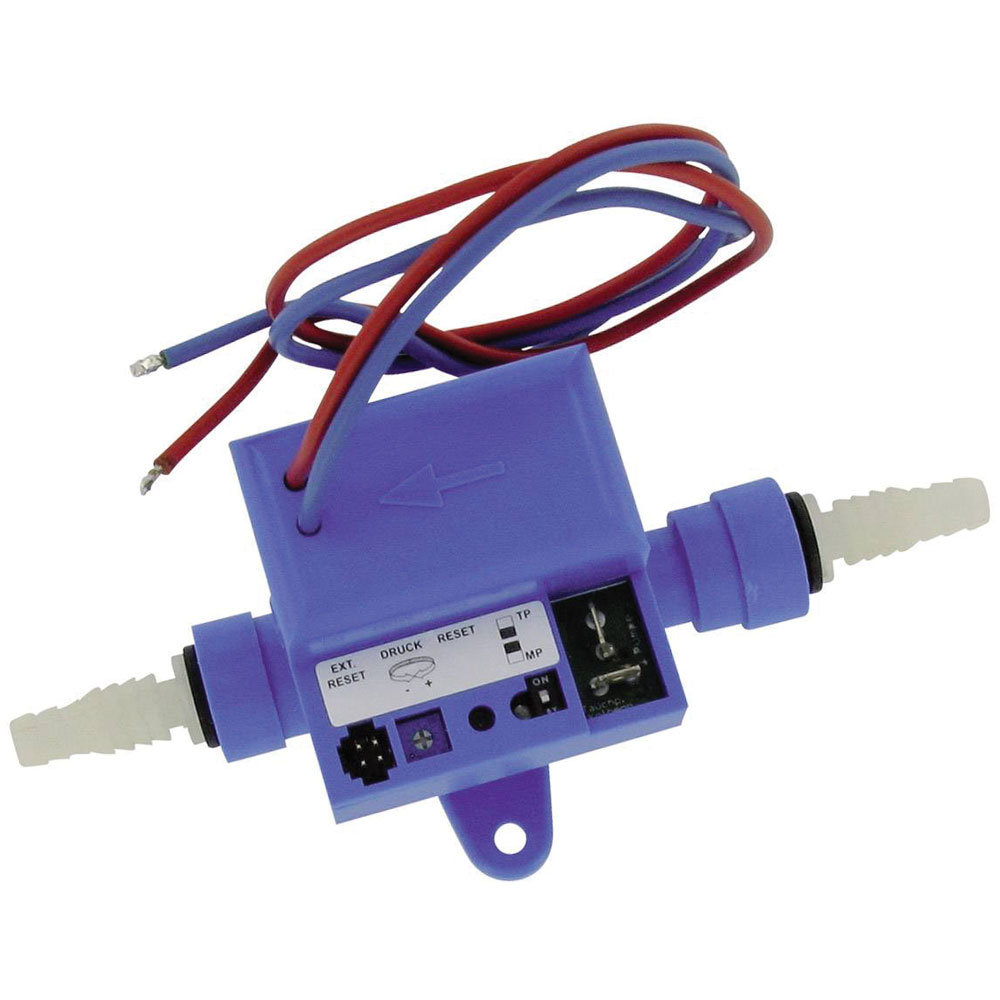

Image Representative of Range

Comet 3550.01.12 Water Pressure Switch 0.8-1.4 Bar 10-15V DC Ceramic

Comet
Standard range
Order Code:

11-6322

Brand: Comet MPN: 3550.01.12 EAN-13: 4031656002014
Qty Unit Price (Ex VAT)
1+ £88.15
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

The Comet water pressure switch operates within a range of 0.8 to 1.4 bar and requires a voltage between 10 and 15 V/DC. As a reliable component of part number 3550.01.12, it is often used in systems to monitor and control water flow and pressure. This switch is suitable for applications in water pumps and other fluid-based systems where consistent pressure regulation is necessary.
Type Water pressure switch
Connection Cable with open ends
Connector type 10 mm hose terminal and 12 mm John Guest connection
Depth 79mm
Dim (W x H x D) 100 x 62 x 79 mm
Height 62mm
Operating pressure (max.) 1.4bar
Operating pressure (min.) 0.8bar
Operating pressure range 0.8 up to 1.4 bar
Power Consumption
0.5 - 6 A as a function of used pump
Switching capacity 90W
Switching current (max.) 6A
Width 100mm
