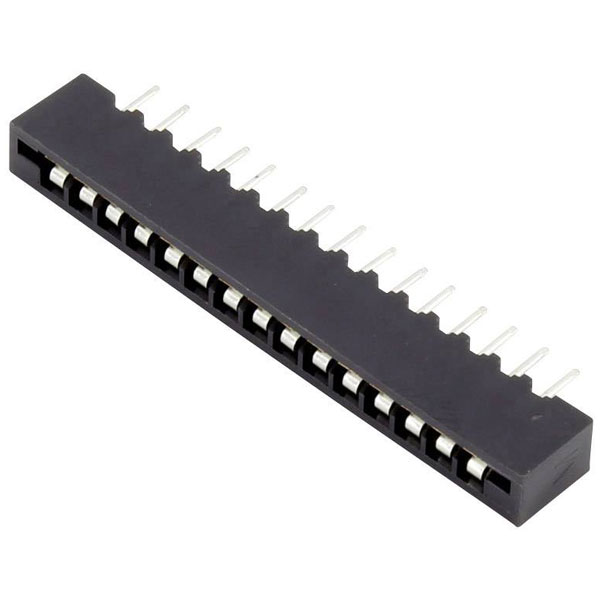

Connfly DS1020-15ST1D Socket Housing PCB 15 Pins 2.54mm Pitch

Connfly
Standard range
Order Code:

08-7945

Brand: Connfly MPN: DS1020-15ST1D EAN-13: 2050003634328
Qty Unit Price (Ex VAT)
1+ £0.398
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
587 in stock, despatched in 4 working days

Connfly's DS1020-15ST1D is a socket housing PCB with 15 pins and a contact spacing of 2.54 mm. It is often used in electronic circuit boards for reliable electrical connections. This component is suitable for various applications, including prototyping and small-scale production.
Board contact surface Tin plated
Case material Thermoplastic UL94V-O
Connection Print
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector type Socket, vertical vertical
Contact material Copper alloy
CS 2.54mm
Dim (L x W x H) 46.10 x 4.50 x 6.75 mm
Factory colour Black
Height 6.75mm
Industrial packaging No
Insulation material Thermoplastic UL94V-O
Length 46.10mm
Manufacturer part # DS1020-15ST1D
Misc Attribute DS1020-15ST1D
No. of rows 1
Nominal current 3A
Nominal current - rounded value 3A
Pin Ø 0.60mm
Pin shape Planar
Pins per row 15
RoHS-compliant Yes
Total number of pins 15
Type Socket housing PCB
Width 4.50mm
