Coratec CT0519S-10-2x09P Interface Socket 18 Pins 0.50mm Spacing

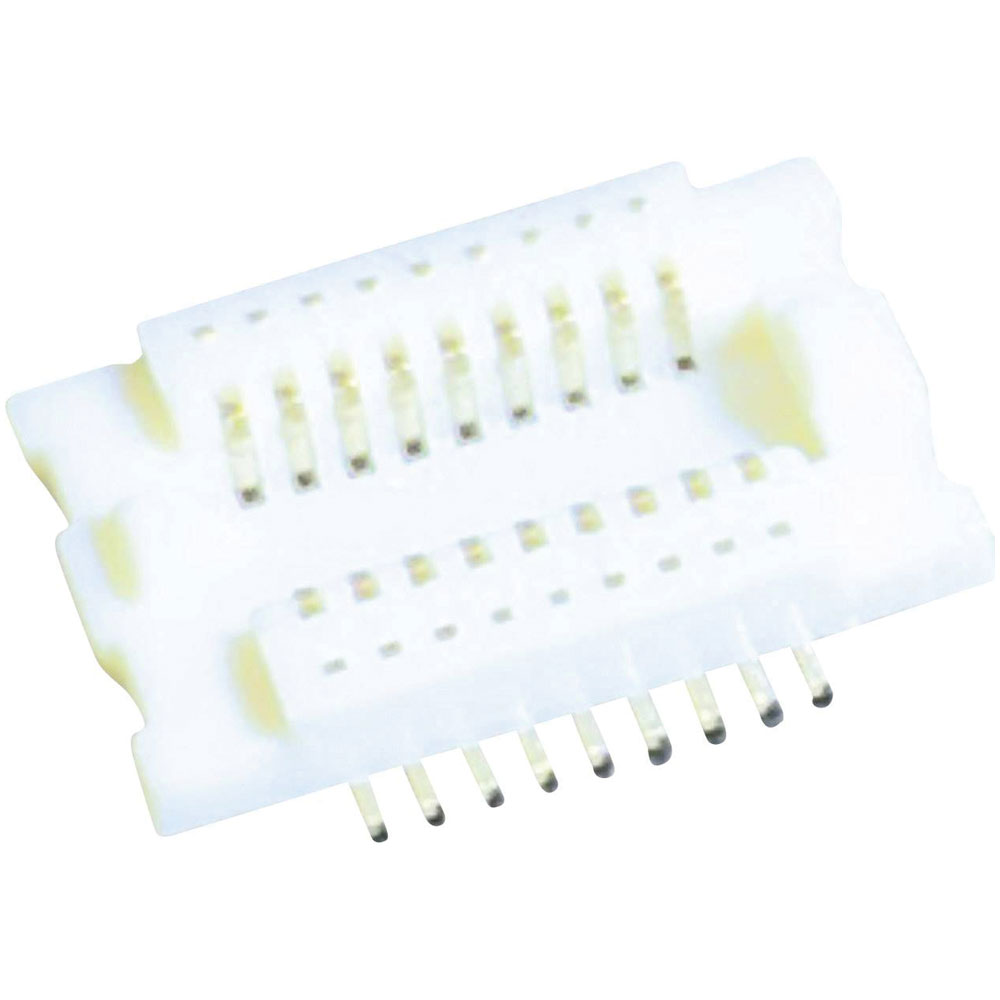

Image Representative of Range

Coratec CT0519S-10-2x09P Interface Socket 18 Pins 0.50mm Spacing

Coratec
Standard range
Order Code:

08-8324

Brand: Coratec MPN: CT0519S-10-2x09P EAN-13: 2050003382717
Qty Unit Price (Ex VAT)
1+ £1.04
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
156 in stock, despatched in 4 working days

The Coratec interface socket CT0519S features 18 pins with a contact spacing of 0.50 mm. This socket is used in model railway applications, specifically for Next 18 decoder interfaces. It is a key component in the NEM 662 standard for model railway electrical connections.
Type Interface socket
Compatible with (details) Nest18 socket CT0519P-05-2x09P
Connection SMD
Connector type Power strip, straight
Contact material Brass
CS 0.50mm
Dim (L x W x H) 7.50 x 5.80 x 1.35 mm
Factory colour Beige
Height 1.35mm
Insulation material Plastic (UL94V0-compliant)
Length 7.50mm
Manufacturer part # CT0519S-10-2x09P
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute NEXT18-Buchse
No. of rows 2
Nominal current 0.5A
Nominal current - rounded value 500mA
Pin shape Planar
Pins per row 9
Rated surge voltage 150V
RoHS-compliant Yes
Series CT0519S
Total number of pins 18
Width 5.80mm
