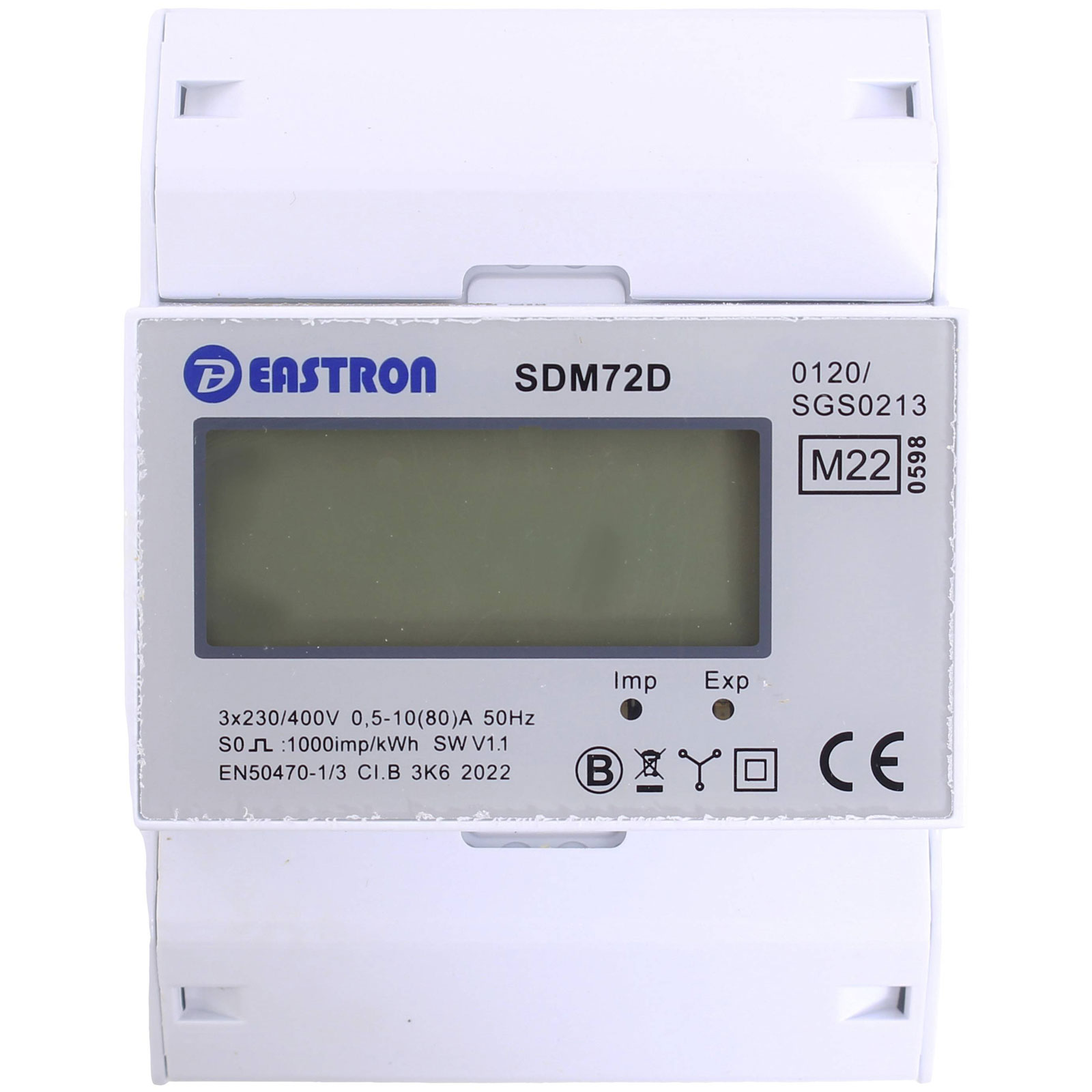

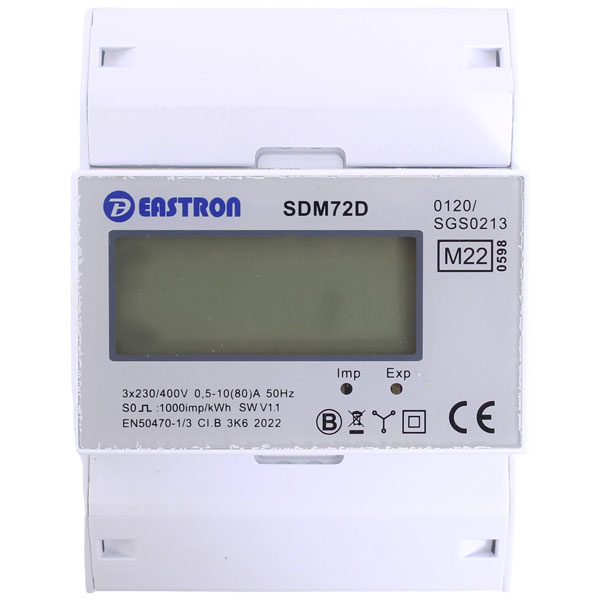

Counttec SDM72D Electricity Meter 3-Phase Digital 80A MID LCD Top Hat Rail

Counttec
Standard range
Order Code:

08-8376

Brand: Counttec MPN: SDM72D EAN-13: 4026576038007
Qty Unit Price (Ex VAT)
1+ £70.84
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
16 in stock, despatched in 4 working days

The Counttec SDM72D is a digital electricity meter designed for three-phase systems. It is MID-approved and can handle up to 80 A, ensuring accurate energy measurement. Typical applications include monitoring energy consumption in residential, commercial, and industrial settings.
Type Electricity meter (3-phase)
Accuracy class Class 1
Connector cross-section (max.) 25mm²
Current load 80A
Dim (L x W x H) 66 x 72 x 100 mm
Frequency 45-66Hz
Height 100mm
IP rating IP20
Length 66mm
Max. temperature +55°C
MID-approved Yes
Min. temperature -25°C
Misc Attribute SDM72D
Mounting Type DIN rail
Nominal current 10A
Operating voltage 400V AC
Width 72mm
