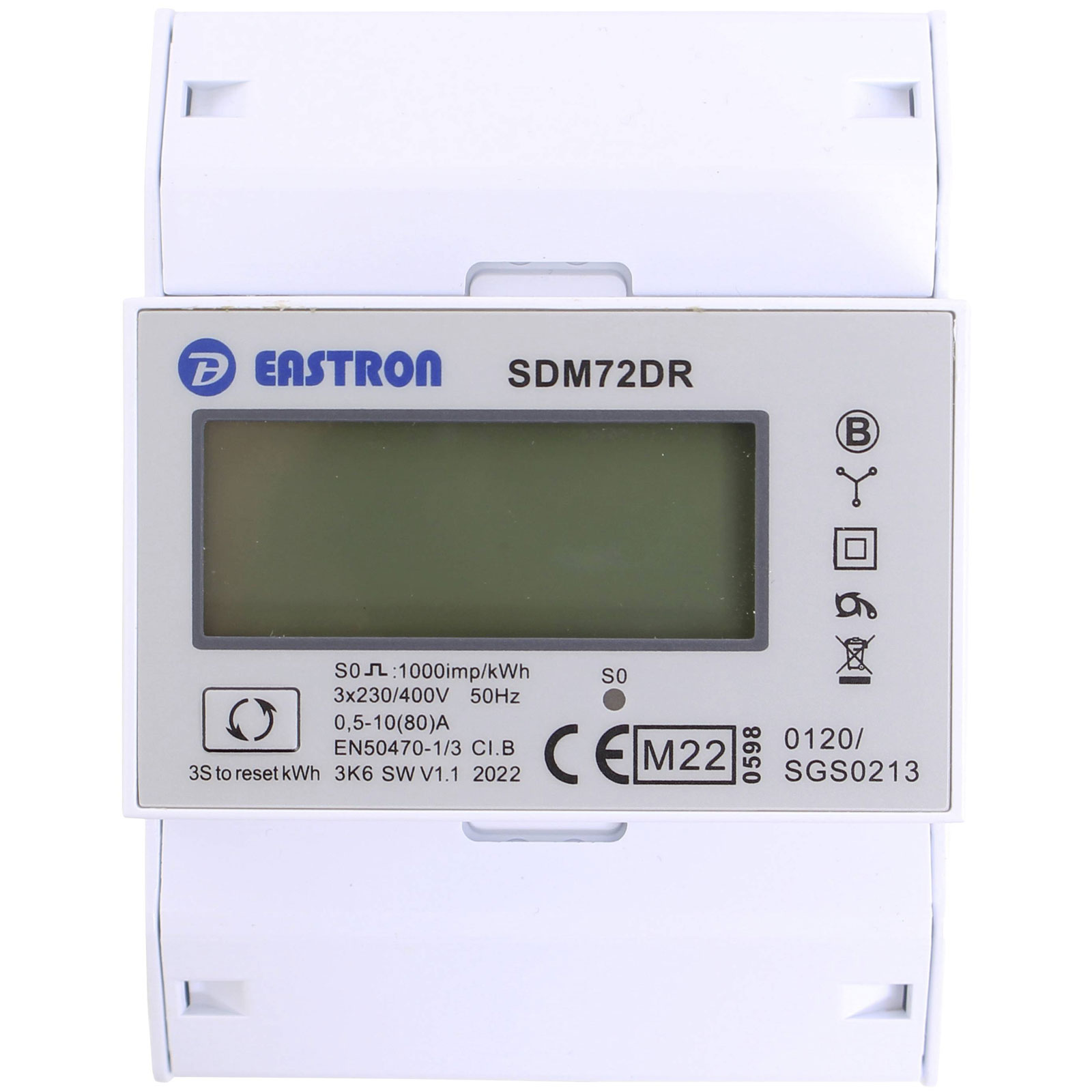

Counttec SDM72DR Meter 3-Phase Digital 80A MID Top Hat Rail LCD Display

Counttec
Standard range
Order Code:

08-8378

Brand: Counttec MPN: SDM72DR EAN-13: 4026576035303
Qty Unit Price (Ex VAT)
1+ £78.71
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
9 in stock, despatched in 4 working days

The Counttec SDM72DR electricity meter is a 3-phase digital device specifically designed for accurately measuring energy consumption up to 80 A. This MID-approved energy meter ensures compliance with stringent European standards. It is ideal for both residential and commercial applications requiring precise energy monitoring.
Type Electricity meter (3-phase)
Accuracy class Class 1
Connector cross-section (max.) 25mm²
Current load 80A
Dim (L x W x H) 66 x 72 x 100 mm
Frequency 45-66Hz
Height 100mm
IP rating IP20
Length 66mm
Max. temperature +55°C
MID-approved Yes
Min. temperature -25°C
Misc Attribute SDM72DR
Mounting Type DIN rail
Nominal current 10A
Operating voltage 400V AC
Special feature Reverse lock
Width 72mm
