Elma TT IZ1234 Isolation Transformer 400V/230V AC 100VA 440mA Terminals

elma TT
Extended range
Order Code:

09-0140

Brand: elma TT MPN: IZ1234 EAN-13: 4016138818956
Qty Unit Price (Ex VAT)
1+ £33.36
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 9 days

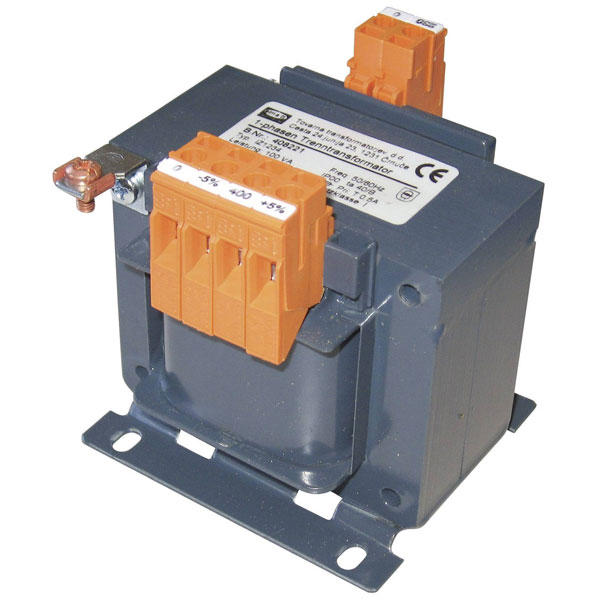

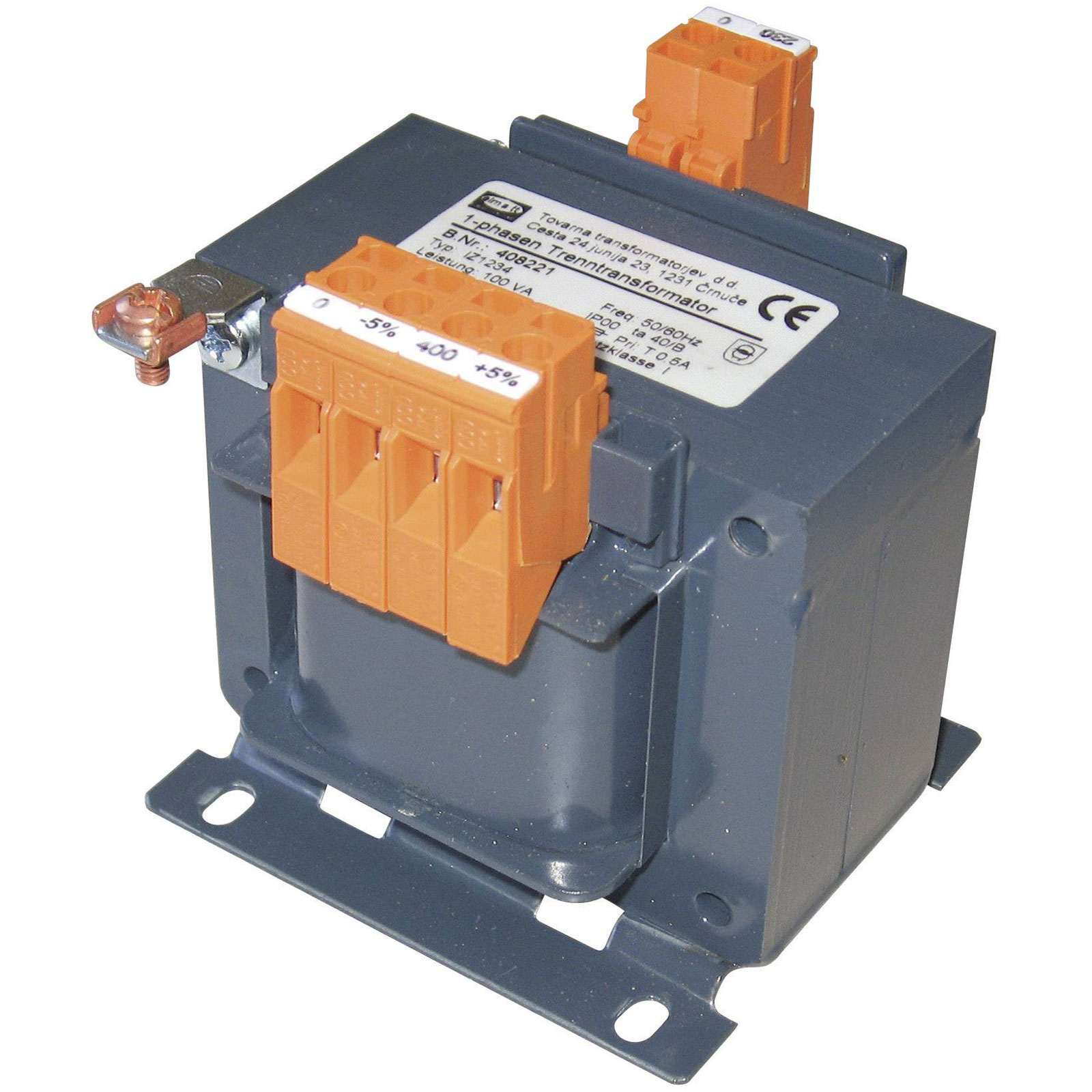

The Elma TT IZ1234 Isolation Transformer is a safety transformer designed to convert a 400 V input to a 230 V AC output. It features a capacity of 100 VA and can support a current of up to 440 mA. Typically used in automation and mains transformer applications, it ensures safe power transfer by isolating the input and output circuits.
Type Isolation transformer
Connection Screw terminal
Design type Open
Dim (L x W x H) 84 x 76 x 91 mm
Frequency 50 - 60Hz
Height 91mm
Input voltage 400V
Input voltage (number x voltage) 1 x 400 V
Insulation class Ta40/B
Length 84mm
Misc Attribute IZ1234
Mounting Type L-piece
No. of inputs 1
No. of outputs 1
Output Current 440mA
Output voltage 230V AC
Output voltage (number x voltage) 1 x 230 V AC
Power 100VA
Standards IEC 61558-2-4, VDE 0570 Part 2-4
Weight 2kg
Width 76mm
