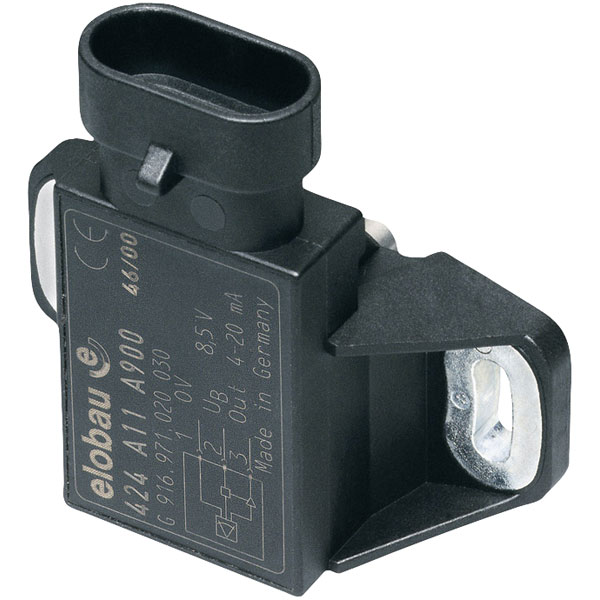

Elobau 424 Series 120° Angle Sensors

Elobau Brand: Elobau
<p>These 120° angle sensors use a contactless measurement principle that uses a magnetic field rotating around a Hall sensor. This produces a very long service life and high level of protection.<br/><br/> The sensors are available in 2x output types, with or without a redundant output and with or without an operating lever.</p>
  • 424A type has 3-pin AMP Super-seal plug
  • 424R type has Deutsch DT04-6P connector (mating part DT06-6S)
  • Spindle with ball bearings
  • Reverse polarity protection
  • Short-circuit proof
  • IP67 Rating
Description Image Product Buy Qty Pricing (Ex VAT) Type Housing Operating Temperature Supply Current Supply Voltage Termination
Elobau 424A11A120 424A Series 4-20mA 120° Angle Sensor without Operating Lever
Elobau 424A11A120 424A Series 4-20mA 120° Angle Sensor without Operating Lever
Standard range
Order code: 59-5320
MPN: 424A11A120

94 in stock, despatched in 4 working days
1+ £100.41
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Angle sensor PBT -40 to +85°C 18mA 10-30V 3-pin AMP Superseal 1.5 plug
Elobau 424A10A120 424A Series 1-5V 120° Angle Sensor without Operating Lever
Elobau 424A10A120 424A Series 1-5V 120° Angle Sensor without Operating Lever
Standard range
Order code: 59-5321
MPN: 424A10A120

59 in stock, despatched in 4 working days
1+ £107.61
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Angle sensor PBT -40 to +85°C 18mA 10-30V 3-pin AMP Superseal 1.5 plug
Elobau 424A Series 4-20mA 120° Angle Sensor with Mounted Operating Lever
Elobau 424A Series 4-20mA 120° Angle Sensor with Mounted Operating Lever
Standard range
Order code: 59-5322
MPN: 424A11A120B

12 in stock, despatched in 4 working days
1+ £119.77
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Angle sensor PBT -40 to +85°C 18mA 10-30V 3-pin AMP Superseal 1.5 plug
Elobau 424A Series 1-5V 120° Angle Sensor with Mounted Operating Lever
Elobau 424A Series 1-5V 120° Angle Sensor with Mounted Operating Lever
Standard range
Order code: 59-5323
MPN: 424A10A120B

24 in stock, despatched in 4 working days
1+ £119.77
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Angle sensor PBT -40 to +85°C 18mA 10-30V 3-pin AMP Superseal 1.5 plug
Order codeOutput signal 1Output signal 2Operating lever
59-53204 - 20mA-424A11A120
59-53211 - 5V-424A10A120
59-53224 - 20mA-424A11A120B
59-53231 - 5V-424A10A120B
59-53244 - 20mA4 - 20mA424RD111P120
59-53251 - 5V1 - 5V424RD100P120
59-53264 - 20mA4 - 20mA424RD111P120B
59-53271 - 5V1 - 5V424RD100P120B

Angular measurement range120°
Operating voltage10 - 30V DC
Current consumption18mA
Resolution<0.1°
Temperature range
Output signal delay
