FESTO DSNU-16-125-PPV-A Round cylinder aluminium 125 mm stroke

FESTO
Standard range
Order Code:

03-2571

Brand: FESTO MPN: 19233
Qty Unit Price (Ex VAT)
1+ £47.36
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

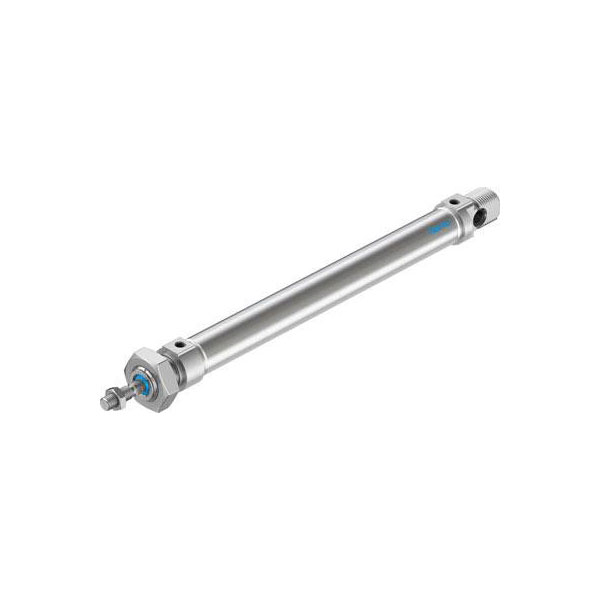

Festo manufactures the DSNU-16-125-PPV-A round pneumatic cylinder with an aluminium wrought alloy enclosure and a 125 mm stroke length. This robust component is ideal for use in industrial automation and machinery requiring precise linear motion control. Typical applications include assembly lines and material handling systems.
Type Round cylinder
Enclosure material Aluminium wrought alloy
Force (max.) 120.6N
Manufacturer part # 19233
Max. ambient temperature +80°C
Max. operating pressure 10bar
Min. ambient temperature -20°C
Min. operating pressure 1bar
Operating medium According to ISO 8573-1:2010 compressed air [7:4:4]
Operating principle Double-acting
Piston diameter 16mm
Piston rod material Steel
Piston rod thread M6
Pneumatics connector M5
Stroke length 125mm
Weight 89.9g
