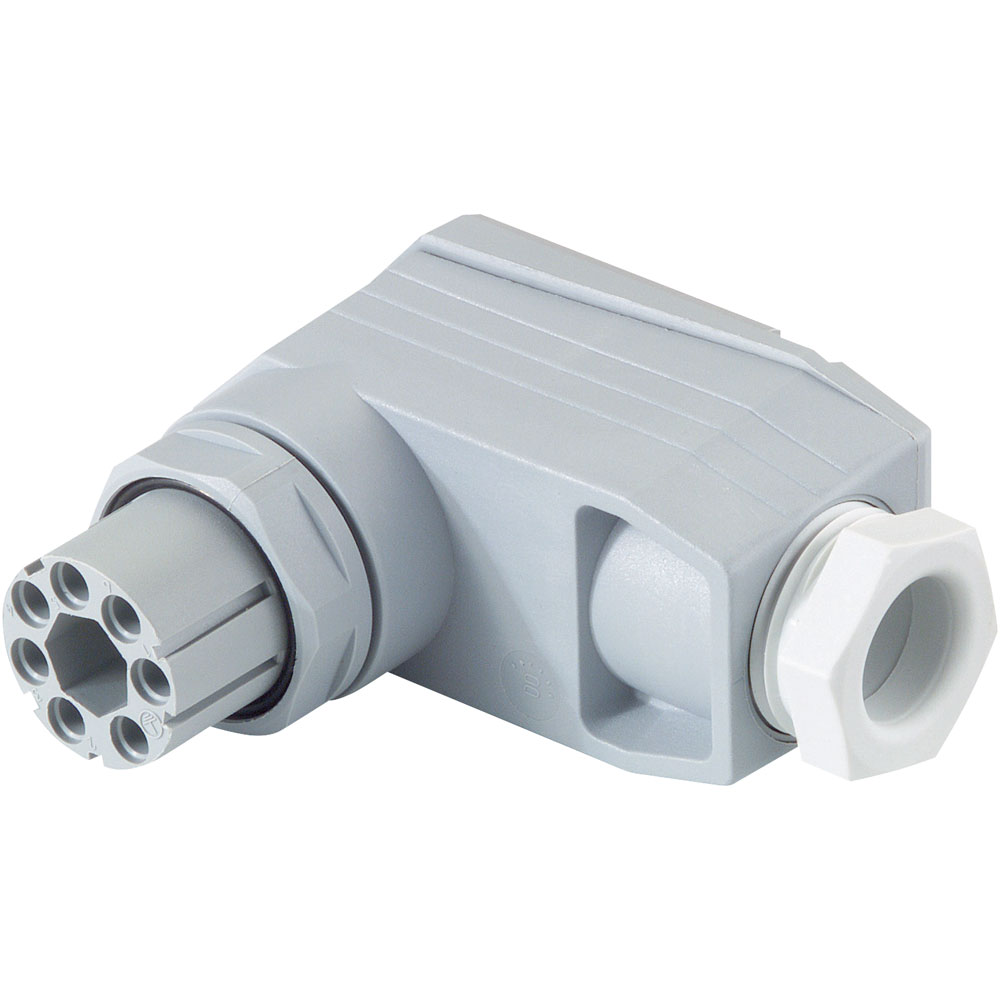

Hirschmann 931 435-106 N6R FF NR PG 11 R/A Cable Socket 6 + PE Grey

A 6 + PE multipin round connector approved to DIN 43651 standard. The connector is robustly constructed with a casing made from shock-proof, leakproof fibre glass reinforced plastic. The casing gives protection to IP 65 and provides a vibration resistant connection via its central threaded sleeve. A cable grip is inserted into the PG threaded connection. This angled cable socket has strain relief provided by means of a clamping cage.

• Min. cable diameter: 7 mm
• Cable diameter (max.): 9 mm
• Casing material: Shockproof/unbreakable fibreglass-reinforced plastic
• Colour: Grey
• Compatible with: R AM..., N6R BM..., N6R BM..., N6R DM
• Connections: Crimp
• Contact material: Surface CuZn silver plated
• Contact type: RBC 162
• Leading contact (PE): Yes
• Operating voltage: 250 V/AC/DC
• Operating current: 10A
• Max. cross section: 1.5 mm²
• Protection class IP65
• Temperature range: -40 to +90 °C
• Total number of pins: 6 + PE
• Manufacturer type: N6R FF
• Manufacturer part No.: 931 435-106
