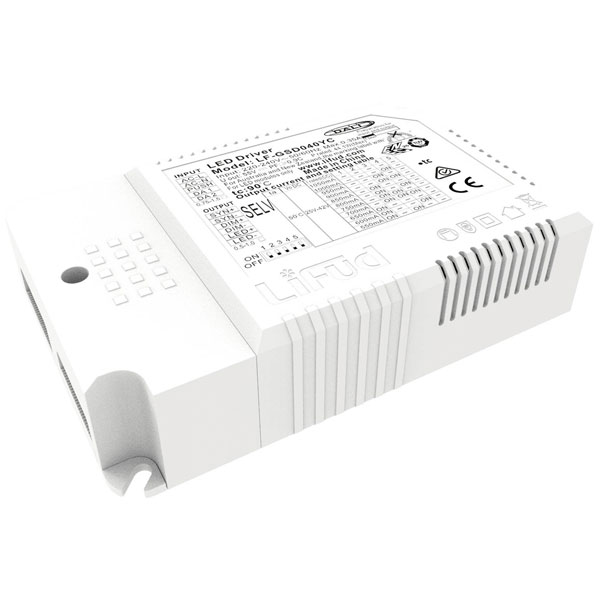

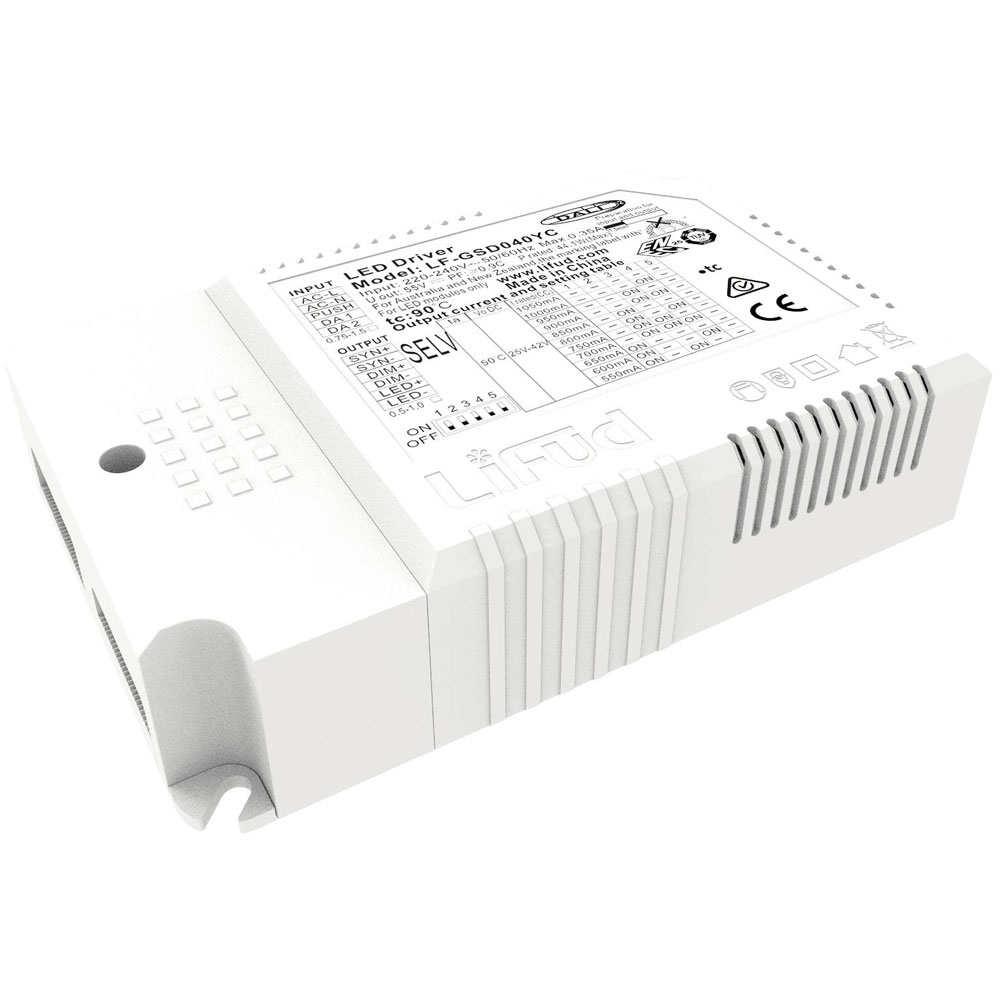

Megatron MT76231 LED Driver Dimmable 44W 550-1050mA 25-42V DALI

Name: Megatron MT76231 LED Driver Dimmable 44W 550-1050mA 25-42V DALI
Brand: Megatron
Price: 40.95 GBP
Availability: InStock

Standard range

Order Code:

09-9031

Brand: Megatron MPN: MT76231 EAN-13: 4020856762316

RoHS Compliant
Country of Origin: China
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£40.95

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

4 in stock, despatched in 4 working days

Product Details
Data Sheets
Quick Quote

The Megatron MT76231 LED Driver is a dimmable power supply unit designed for LED systems. With a constant current output of 44 W, it supports ranges from 550 to 1050 mA and 25 to 42 V. Ideal for LED strips or similar applications, it ensures reliable and adjustable power delivery.

Type	LED driver
Circuits	40000
Dim	(L x W x H) 100 x 70 x 30 mm
Factory colour	White
Height	30mm
Input voltage (max.)	240V
Inputs	1
Length	100mm
Material	PC
Max. output current	1050mA
Max. power	44W
Min. input voltage	220V
Misc Attribute	Constant current
No. of inputs	1
No. of outputs	1
Operating voltage	230V
Output current (max.) - rounded	1.05A
Output current (min.)	550mA
Output voltage (max.)	42V
Output voltage (min.)	25V
Power factor	0.9
Power range	44 W (max)
Product lifespan approx	50000h
Protection class	II
Weight	131g
Width	70mm
