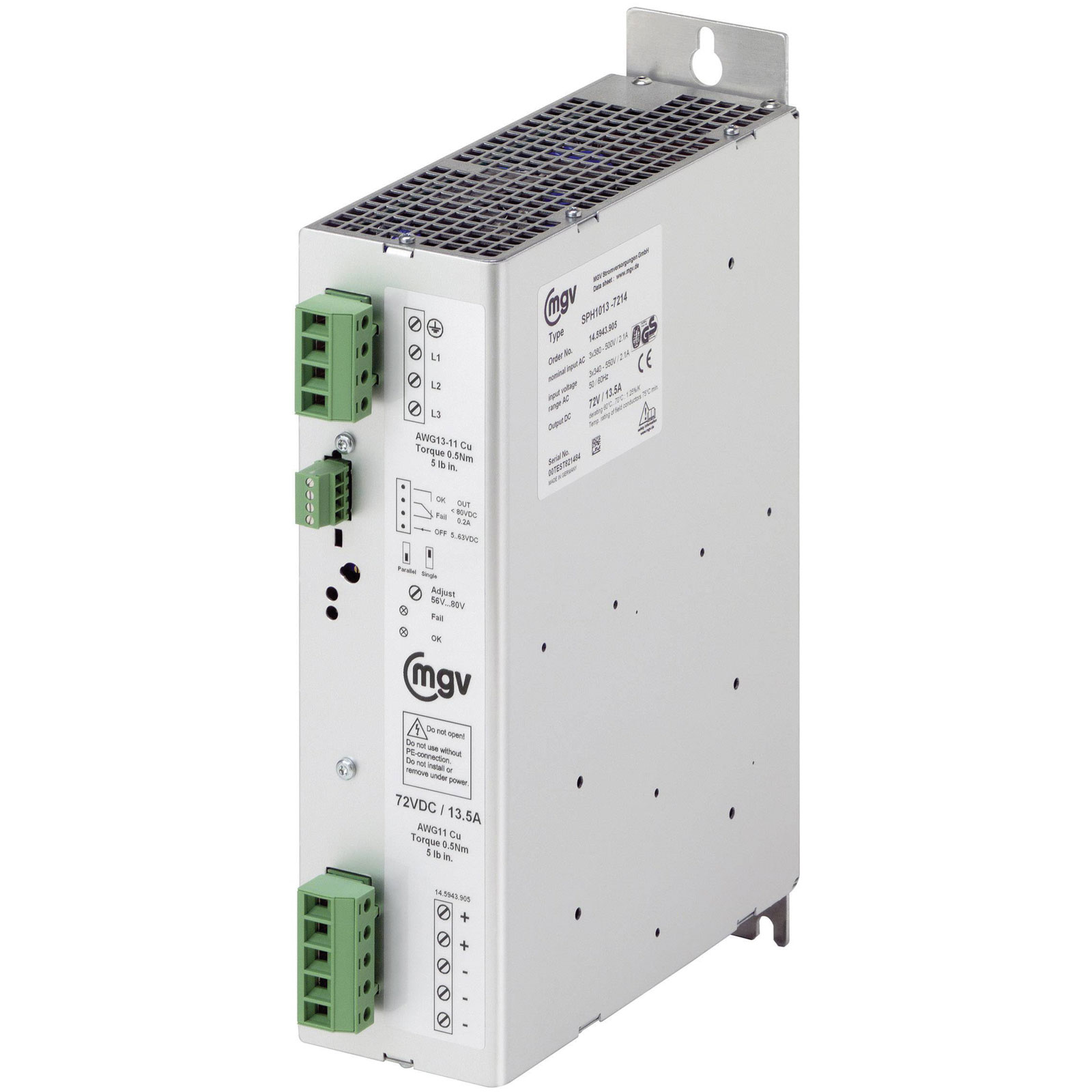

mgv SPH1013-7214 Power Supply 72V DC 13.5A 1000W Super-Slim Robust Design

Standard range

Order Code:

12-4816

Brand: mgv MPN: 14.5943.975 EAN-13: 4016138543889

RoHS Compliant
Country of Origin: Germany
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£465.70

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

3 in stock, despatched in 4 working days

Product Details
Data Sheets
Quick Quote

The mgv SPH1013-7214 is a 72 V DC, 13.5 A, 1000 W switch-mode power supply unit. It features screw terminal connections and is typically used for printed circuit board power applications. This unit is ideal for powering batteries and other power devices in various AC/DC settings.

Type	SMPSU
Depth	177mm
Dim	(W x H x D) 66 x 230 x 177 mm
Height	230mm
Input voltage	340 - 550V AC
Input voltage (max.)	550V AC
Max. output current	13.5A
Min. input voltage	340V AC
Misc Attribute 1	SPH1013-7214
Misc Attribute 2	Synchronised
Misc Attribute 3	closed
No. of outputs	1
Output current (max.) - rounded	13.5A
Output current 1	13.5A
Output voltage (max.)	72V DC
Output voltage 1	72V DC
Power	1000W
Weight	2kg
Width	66mm
