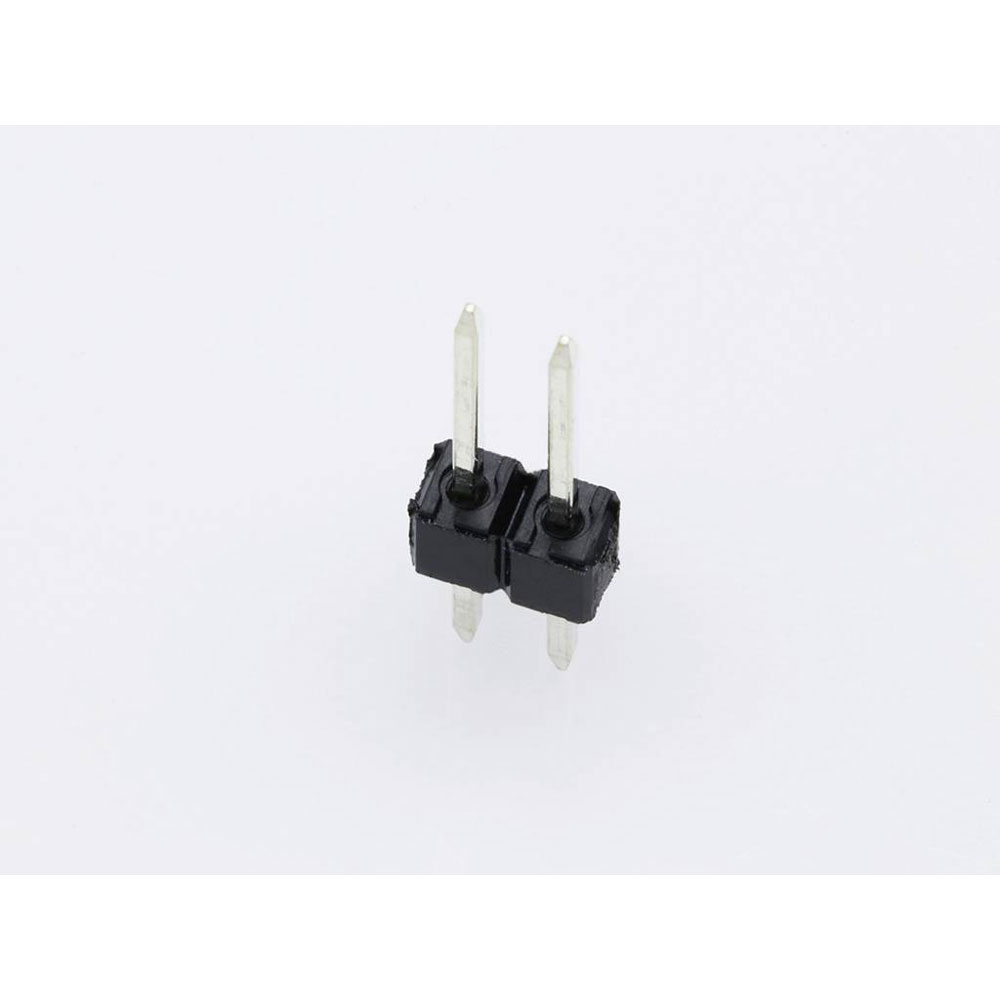

Molex 22284020 KK 254 Header Vertical 2 Circuits Tin Plating 6.09mm

Name: Molex 22284020 KK 254 Header Vertical 2 Circuits Tin Plating 6.09mm
Brand: Molex
Price: 0.075 GBP
Availability: InStock

Standard range

Order Code:

05-3279

Brand: Molex MPN: 22284020

RoHS Compliant
Country of Origin:
Free UK shipping available
View Full Product Range (16)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£0.075

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

3,211 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

The Molex Built-in pin strip, part number 22284020, features a single row design ideal for straightforward, compact connections. Manufactured by Molex, this standard pin strip is widely used in electronics for prototyping and connecting single PCB boards. Its reliable performance is suitable for various electronic applications requiring a single-row connector.

No. of rows	1
Board contact surface	Tin
Case material	High temperature resistant thermoplastic
Coating thickness (PCB side)	2.54µm
Connection	Soldering
Connector coating thickness	2.54µm
Connector contact surface	Tin
Connector orientation	Perpendicular (to the PCB)
Contact material	Brass
CS	2.54mm
Engineering Part No	42375-0002
Engineering Series Name	.100 BKWY W/KINK
Engineering Series No	42375
Factory colour	Black
Manufacturer part #	22284020
Misc Attribute	Molex MOL Power & Signal Sol.
Nominal current	4A
Nominal current - rounded value	4A
Nominal voltage	500V
Packaging type	Bag
RoHS-compliant	Yes
Total number of pins	2
Type	Built-in pin strip (standard)
