Molex 22284122 KK 254 Header 12 Circuits Tin Plating 1 Row 7.49mm Pin

Name: Molex 22284122 KK 254 Header 12 Circuits Tin Plating 1 Row 7.49mm Pin
Brand: Molex
Price: 0.532 GBP
Availability: InStock

Standard range

Order Code:

05-3282

Brand: Molex MPN: 22284122

RoHS Compliant
Country of Origin:
Free UK shipping available
View Full Product Range (16)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£0.532

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

810 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

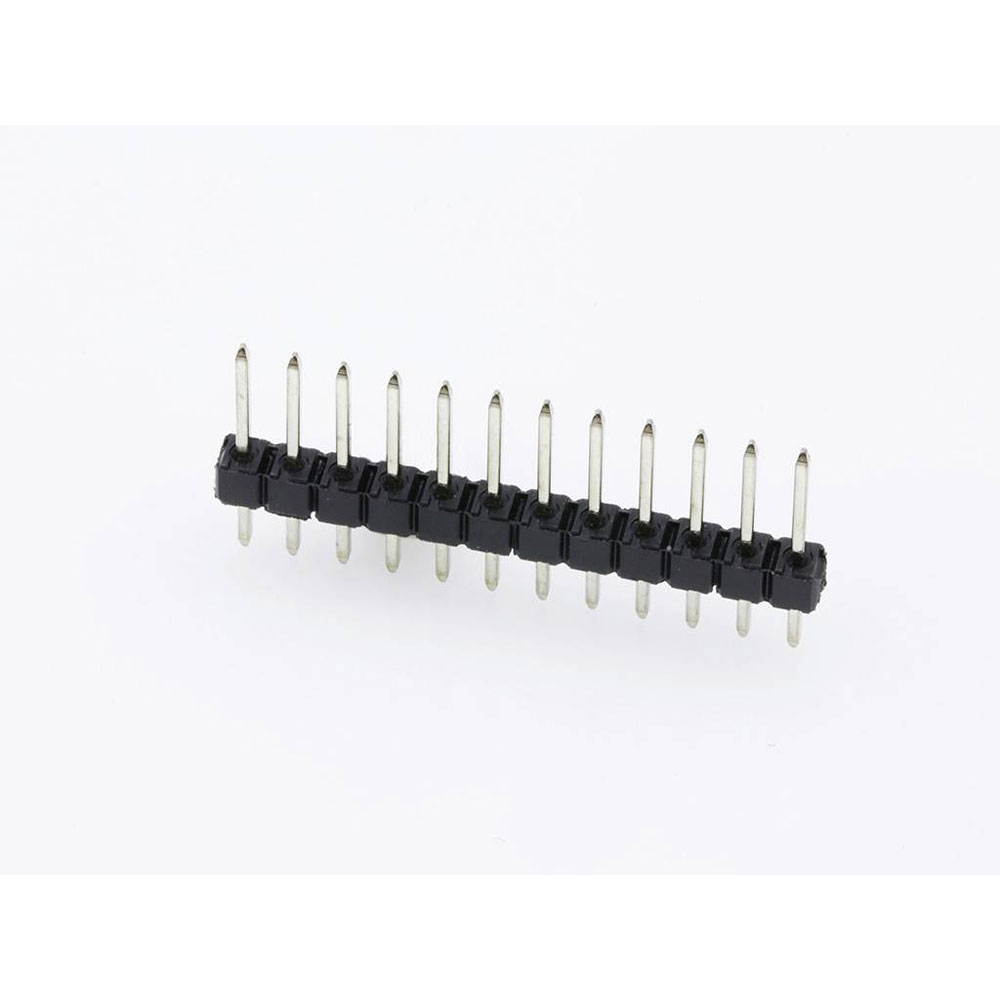

Molex's built-in pin strip with part number 22284122 is a standard pin strip featuring a single row configuration. It is commonly used for connecting circuits in various electronic applications. This product is packed as one piece per bag and is ideal for reliable PCB connections.

No. of rows	1
Board contact surface	Tin
Case material	High temperature resistant thermoplastic
Coating thickness (PCB side)	2.54µm
Connection	Soldering
Connector coating thickness	2.54µm
Connector contact surface	Tin
Connector orientation	Perpendicular (to the PCB)
Contact material	Brass
CS	2.54mm
Engineering Part No	42375-0222
Engineering Series Name	.100 BKWY W/KINK
Engineering Series No	42375
Factory colour	Black
Manufacturer part #	22284122
Misc Attribute	Molex MOL Power & Signal Sol.
Nominal current	4A
Nominal current - rounded value	4A
Nominal voltage	500V
Packaging type	Bag
RoHS-compliant	Yes
Total number of pins	12
Type	Built-in pin strip (standard)
