Molex 26602020 KK 396 Header 2 Circuits 3.96mm Spacing Tin Plating

Name: Molex 26602020 KK 396 Header 2 Circuits 3.96mm Spacing Tin Plating
Brand: Molex
Price: 0.740 GBP
Availability: InStock

Standard range

Order Code:

05-3311

Brand: Molex MPN: 26602020

RoHS Compliant
Country of Origin:
Free UK shipping available
View Full Product Range (13)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£0.740

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

88 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

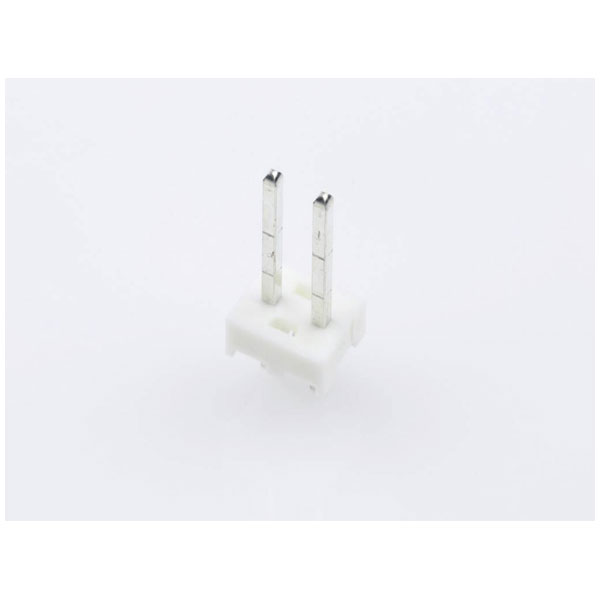

The Molex 26602020 is a standard-built pin strip featuring 2 pins with a contact spacing of 3.96 mm. Manufactured by Molex, this component is suitable for various electronic applications requiring reliable connections. It is provided in a bag, typically used for interconnectivity in electronic devices and circuitry.

No. of rows	1
Board contact surface	Tin
Case material	Polyester
Coating thickness (PCB side)	5.08µm
Connection	Soldering
Connector coating thickness	5.08µm
Connector contact surface	Tin
Connector orientation	Perpendicular (to the PCB)
Contact material	Brass
CS	3.96mm
Engineering Part No	41771-0002
Engineering Series Name	.156 HDR,SQ PIN
Engineering Series No	41771
Factory colour	Ecru
Manufacturer part #	26602020
Misc Attribute	Molex MOL Power & Signal Sol.
Nominal current	7A
Nominal current - rounded value	7A
Nominal voltage	250V
Packaging type	Bag
RoHS-compliant	Yes
Total number of pins	2
Type	Built-in pin strip (standard)
