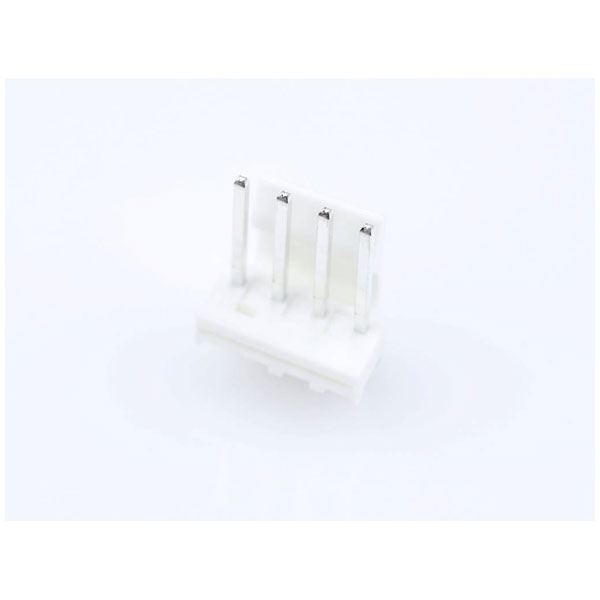

Molex 26604040 KK 396 Header 4 Pins 3.96mm Spacing Vertical Tin Plated

Name: Molex 26604040 KK 396 Header 4 Pins 3.96mm Spacing Vertical Tin Plated
Brand: Molex
Price: 0.351 GBP
Availability: InStock

Standard range

Order Code:

05-3314

Brand: Molex MPN: 26604040

RoHS Compliant
Country of Origin:
Free UK shipping available
View Full Product Range (13)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£0.351

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

1,716 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

The Molex built-in pin strip, model 26604040, features four pins with a contact spacing of 3.96 mm. It is supplied in a 1-piece bag and is ideal for establishing electrical connections in electronic projects. This standard pin strip is commonly used in prototyping and custom circuit board applications.

No. of rows	1
Board contact surface	Tin
Case material	Polyester
Coating thickness (PCB side)	5.08µm
Connection	Soldering
Connector coating thickness	5.08µm
Connector contact surface	Tin
Connector orientation	Perpendicular (to the PCB)
Contact material	Brass
CS	3.96mm
Engineering Part No	41791-0004
Engineering Series Name	.156 HDR,LKNG STR,SQ
Engineering Series No	41791
Factory colour	Ecru
Manufacturer part #	26604040
Misc Attribute	Molex MOL Power & Signal Sol.
Nominal current	7A
Nominal current - rounded value	7A
Nominal voltage	250V
Packaging type	Bag
RoHS-compliant	Yes
Total number of pins	4
Type	Built-in pin strip (standard)
