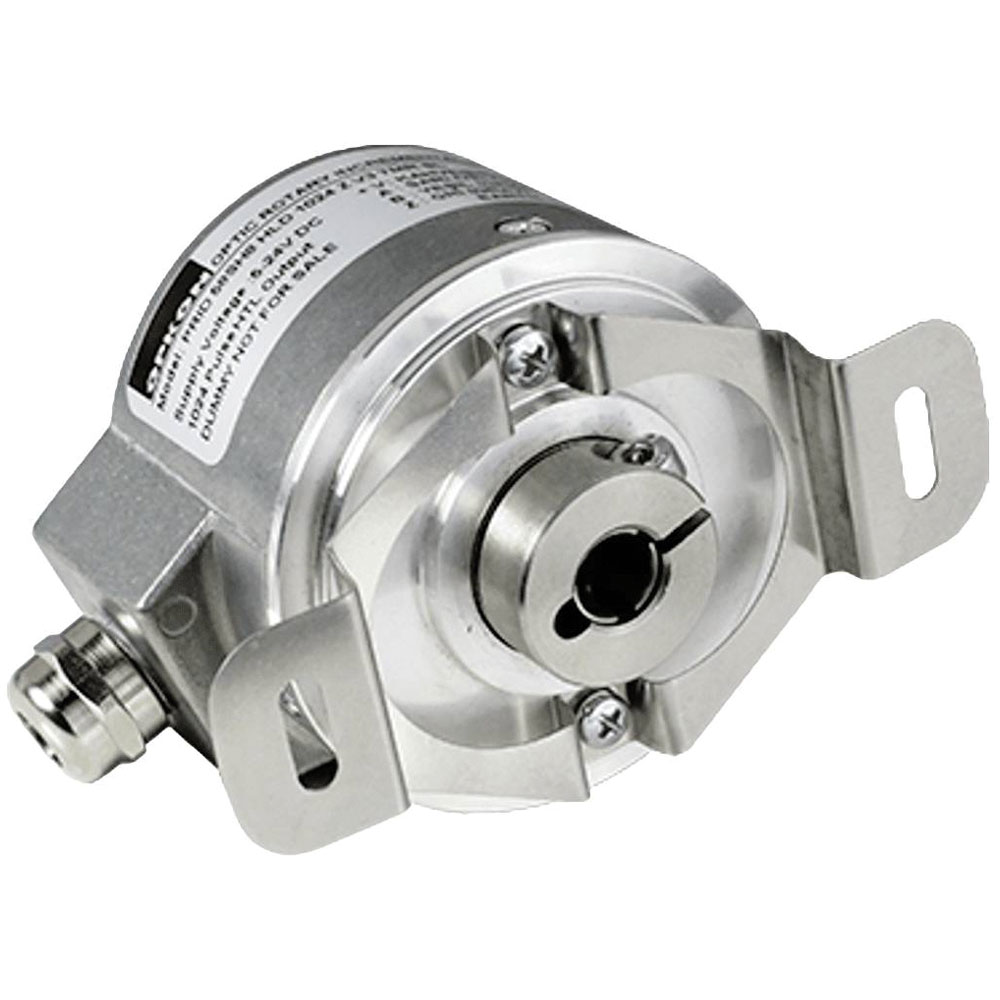

Opkon PRI58H8HLD1024ZZV32M5R Incremental Rotary Encoder Optical Precise

Name: Opkon PRI58H8HLD1024ZZV32M5R Incremental Rotary Encoder Optical Precise
Brand: Opkon
Price: 139.93 GBP
Availability: InStock

Standard range

Order Code:

12-5724

Brand: Opkon MPN: PRI 58H8 HLD 1024 ZZ V3 2M5R EAN-13: 4016138941876

RoHS Compliant
Country of Origin: Turkey
Free UK shipping available
View Full Product Range (13)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£139.93

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

3 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

The Opkon Incremental Rotary Encoder PRI 58H8 HLD 1024 ZZ V3 2M5R is an optical rotation pulse generator designed for precision measurement of rotational position. This position sensor features 1024 pulses per revolution, making it ideal for applications requiring accurate angle and tilt detection. Typical uses include automation systems, robotics, and industrial machinery where reliable motion tracking is essential.

Type	Rotary encoder
(Ø)	58mm
Cable length	2.50m
Dim	(Ø) 58 mm
Impulses per cycle (max.)	1024
Interfaces	HTL
IP rating	IP50
Material (shaft)	Stainless steel
Max. operating voltage	24V DC
Max. temperature	+80°C
Min. operating voltage	5V DC
Min. temperature	-20°C
Misc Attribute	PRI 58H8 HLD 1024 ZZ V3 2M5R
Model	Incremental
No. of rotations	4000
Operating voltage	5 - 24 V DC
Shaft Ø	8mm
Technology	Optical
