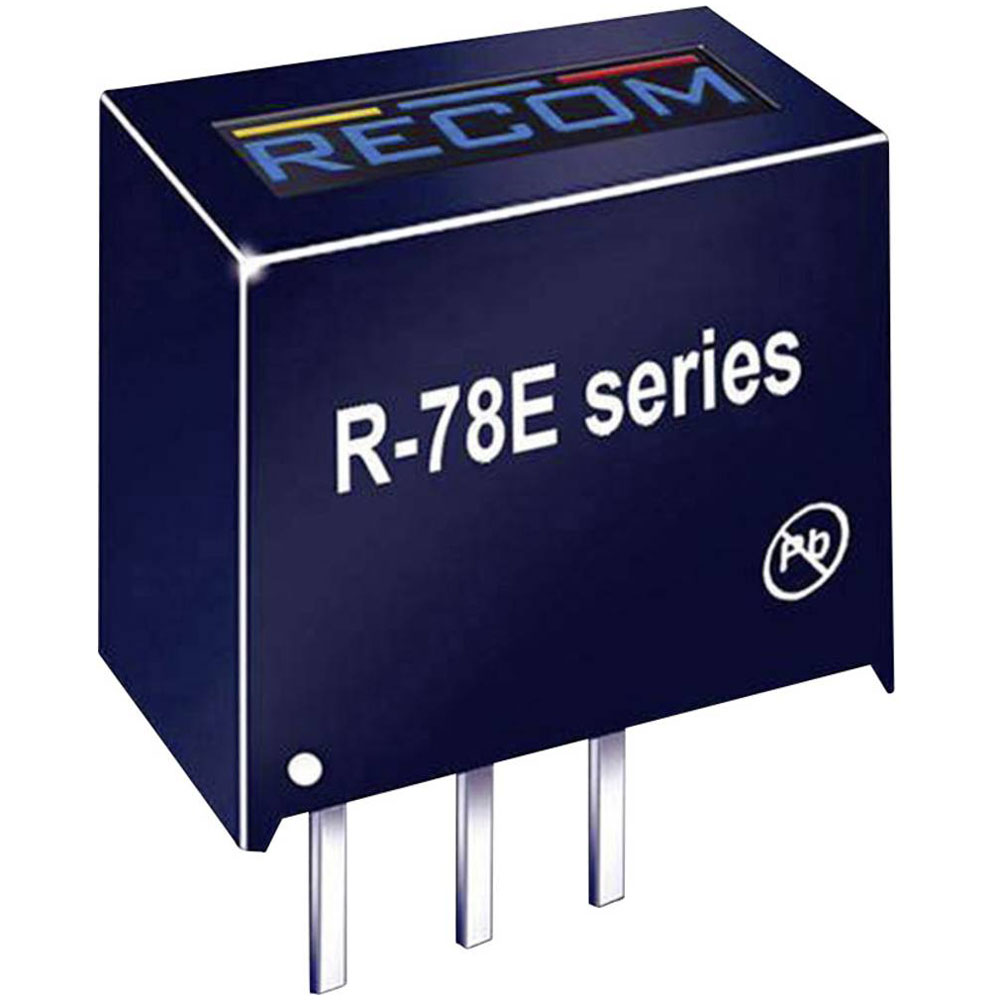

RECOM R-78E5.0-1.0 DC/DC converter 5 V 1 A 5 W

Recom
Standard range
Order Code:

18-0397

Brand: Recom MPN: R-78E5.0-1.0 EAN-13: 2050004759938
Qty Was Unit Price (Ex VAT)
1+ £3.78 £3.14
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
72 in stock, despatched in 4 working days

RECOM R-78E5.0-1.0 DC/DC Converter, offering a compact and efficient way to convert 9-36V input voltage into a stable 5V output at 1A (5W). This robust module is perfect for a variety of applications, from industrial automation to telecommunications and consumer electronics. The R-78E5.0-1.0 features a high conversion efficiency of up to 94%, reducing heat generation and saving energy.
Type Converter
Connection Solder pins
Dim (L x W x H) 11.6 x 10.4 x 8.5 mm
Efficiency (max.) 91.0%
Enclosure SIP 3
Height 8.5mm
Input voltage (max.) 28V DC
Length 11.6mm
Max. output current 1A
Min. input voltage 4.5V DC
Misc Attribute R-78E5.0-1.0
No. of outputs 1
Operating temperature (max.) +85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 1A
Output voltages 5V
Power 5W
Weight 2g
Width 10.4mm
