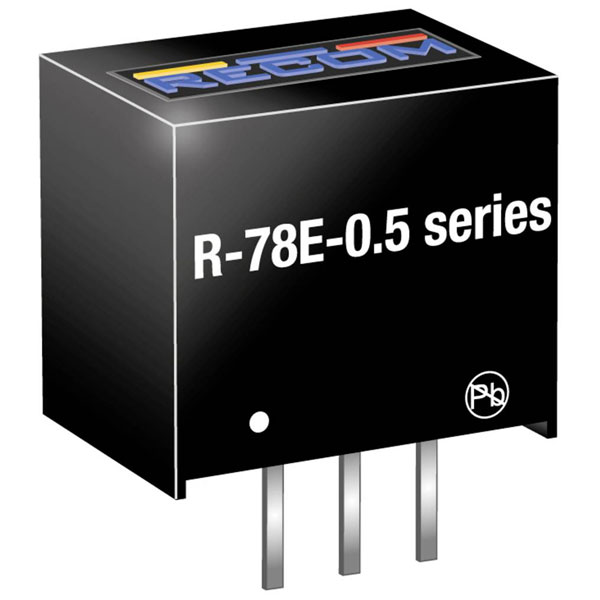

RECOM R-78E9.0-0.5 DC/DC converter 9 500 mA

This robust, compact solution is ideal for a wide range of applications, from industrial automation to battery-powered devices. Its high efficiency of up to 96% reduces heat generation, ensuring longevity and stability in your systems. The R-78E series is easy to integrate, with a pin-compatible design that makes replacement a breeze. Experience the convenience of built-in short-circuit and over-temperature protection, guaranteeing safety and reliability in every project.

Type	Converter
Dim	(L x W x H) 11.6 x 8.5 x 10.4 mm
Enclosure	SIP 3
Height	10.4mm
Input voltage (max.)	12V
Length	11.6mm
Max. output current	500mA
Min. input voltage	12V
Misc Attribute	R-78E9.0-0.5
No. of outputs	1
Output current (max.) - rounded	500mA
Output voltage (max.)	9V
Output voltage (min.)	9V
Output voltages	9
RoHS-compliant	Yes
Width	8.5mm
