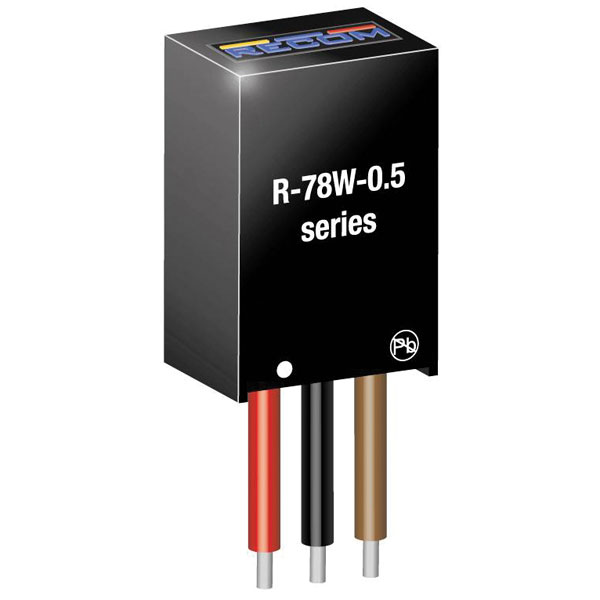

RECOM R-78W12-0.5 DC/DC converter 500 mA

Delivering a robust 500 mA output with a simple pin-compatible footprint, this compact converter is perfect for a variety of applications, including industrial automation, renewable energy systems, and telecommunications. With an impressive 90% efficiency and built-in short circuit protection, you can trust the R-78W12-0.5 for exceptional performance and reliability. Its wide input voltage range ensures compatibility across different systems, while its thermal management design minimizes heat output, allowing for seamless integration into your existing setups.

Type	Converter
Dim	(L x W x H) 11.5 x 8.5 x 17.5 mm
Enclosure	SIP 3
Height	17.5mm
Input voltage (max.)	32V
Length	11.5mm
Max. output current	500mA
Min. input voltage	15V
Misc Attribute	R-78W12-0.5
No. of outputs	1
Output current (max.) - rounded	500mA
Output voltage (max.)	12V
Output voltage (min.)	12V
RoHS-compliant	Yes
Width	8.5mm
