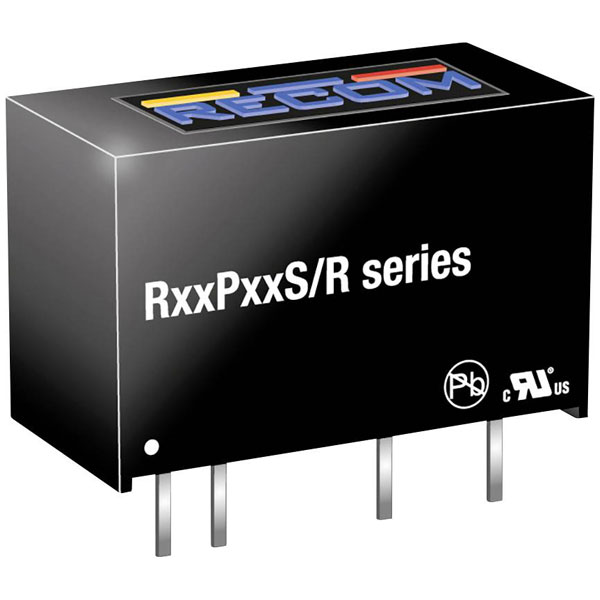

RECOM R05P05S/R8 DC/DC converter 200 mA 1 W

Name: RECOM R05P05S/R8 DC/DC converter 200 mA 1 W
Brand: Recom
Price: 20.23 GBP
Availability: InStock

Standard range

Order Code:

18-0068

Brand: Recom MPN: R05P05S/R8 EAN-13: 2050006595718

RoHS Compliant
Country of Origin: Taiwan
Free UK shipping available
View Full Product Range (5)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£20.23

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

3 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

Compact and efficient, this converter features an input voltage range of 4.5 to 12 V, making it versatile for various designs. With its high efficiency and low ripple output, the R05P05S/R8 ensures optimal performance while conserving energy, thereby prolonging the life of your devices

Type	Converter
Dim	(L x W x H) 19.5 x 9.8 x 12.5 mm
Enclosure	SIP 7
Height	12.5mm
Input voltage (max.)	5V
Insulation voltage	8000V
Length	19.5mm
Max. output current	200mA
Min. input voltage	5V
No. of outputs	1
Output current (max.) - rounded	200mA
Output voltage (max.)	5V
Output voltage (min.)	5V
Power	1W
RoHS-compliant	Yes
Width	9.8mm
