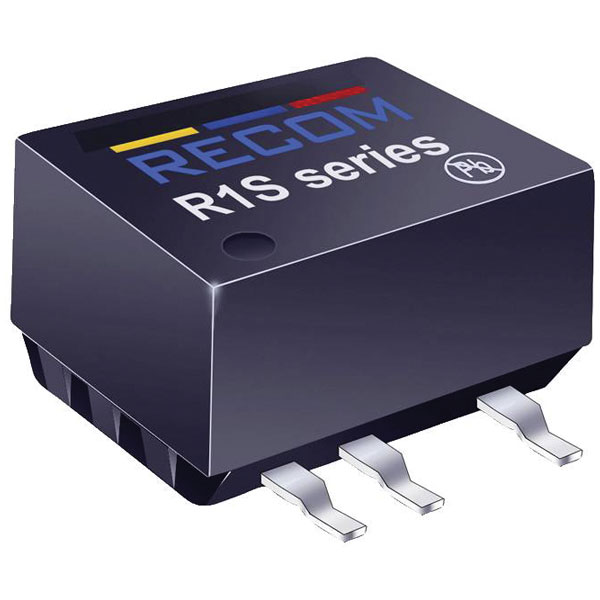

RECOM R1S-3.33.3-R DC/DC converter 3.3 V 3.30 V 0.303 A 1 W

Name: RECOM R1S-3.33.3-R DC/DC converter 3.3 V 3.30 V 0.303 A 1 W
Brand: Recom
Price: 6.60 GBP
Availability: InStock

Standard range

Order Code:

18-0658

Brand: Recom MPN: R1S-3.33.3-R EAN-13: 2050009111687

RoHS Compliant
Country of Origin: Taiwan
Free UK shipping available
View Full Product Range (17)

Inc VAT

Qty	Was	Unit Price (Ex VAT)
1+	£8.61	£6.60

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

47 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

RECOM R1S-3.33.3-R DC/DC converter, designed for seamless voltage regulation at 3.3 V with a reliable output of 0.303 A (1 W). This robust converter features a compact design, making it ideal for space-constrained applications, while delivering excellent efficiency to ensure minimal energy loss

Type	Converter
Connection	SMD
Dim	(L x W x H) 12.75 x 10.70 x 6.70 mm
Efficiency (max.)	75%
Height	6.70mm
Input voltage (max.)	3.63V DC
Insulation voltage	1.000V
Length	12.75mm
Max. output current	0.303A
Min. input voltage	2.97V DC
Misc Attribute	R1S-3.33.3-R
No. of outputs	1
Nominal voltage	3.3V
Operating temperature (max.)	+100°C
Operating temperature (min.)	-40°C
Output current (max.) - rounded	303mA
Output voltages	3.30V
Power	1W
RoHS-compliant	Yes
Width	10.70mm
