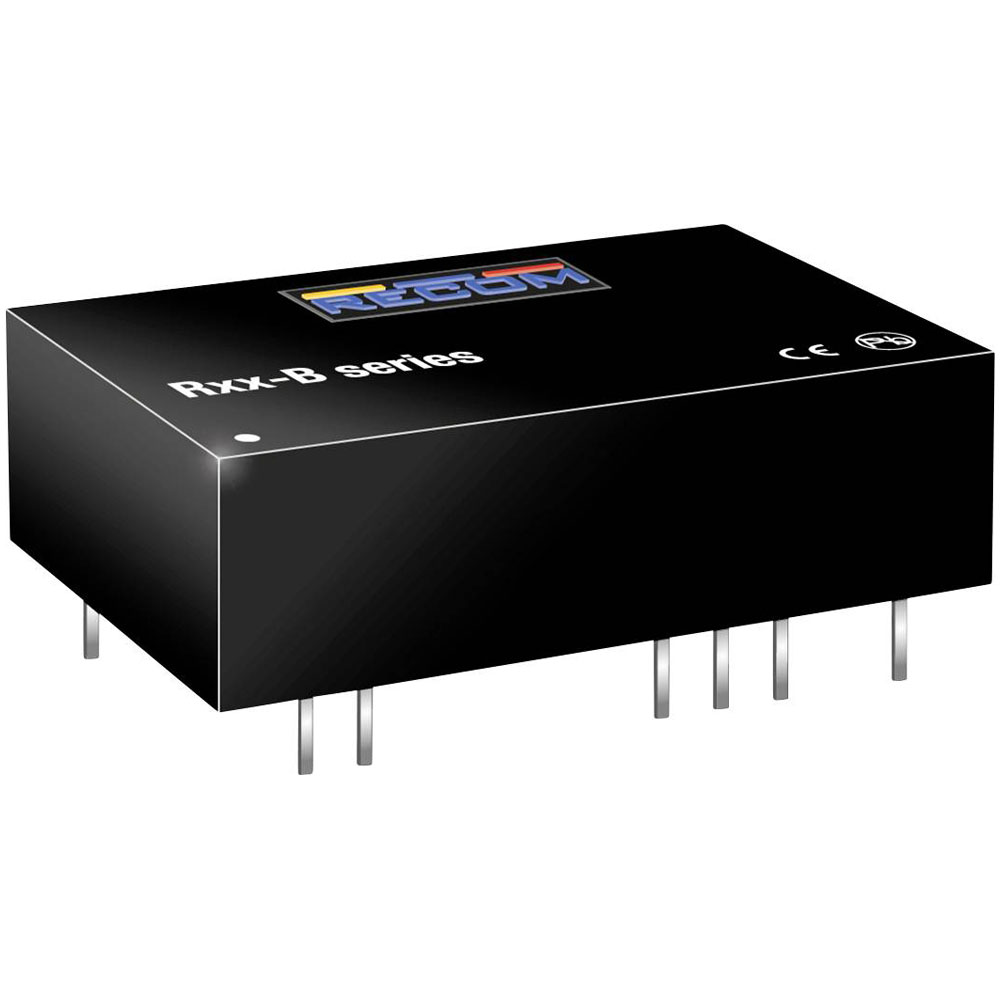

RECOM R24-150B DC/DC converter 50 mA 5 W

The RECOM R24-150B DC/DC Converter delivers an impressive 5 watts of output power with an efficiency rating that meets the demands of today's electronic applications. Specializing in a 24V input, this converter provides a stable 150V output, perfect for powering sensitive equipment and ensuring consistent performance. With a load capacity of 50 mA, it offers high reliability and superb thermal management in a compact design. Easily integrate the R24-150B into your projects, thanks to its robust features: excellent regulation, minimal noise, and wide operating temperature range

Type	Converter
Dim	(L x W x H) 31.8 x 20.3 x 9.4 mm
Enclosure	DIP 24
Height	9.4mm
Input voltage (max.)	27V
Insulation voltage	3000V
Length	31.8mm
Max. output current	50mA
Min. input voltage	21V
Misc Attribute	R24-150B
No. of outputs	1
Output current (max.) - rounded	50mA
Output voltage (max.)	200V
Output voltage (min.)	92V
Power	5W
RoHS-compliant	Yes
Width	20.3mm
