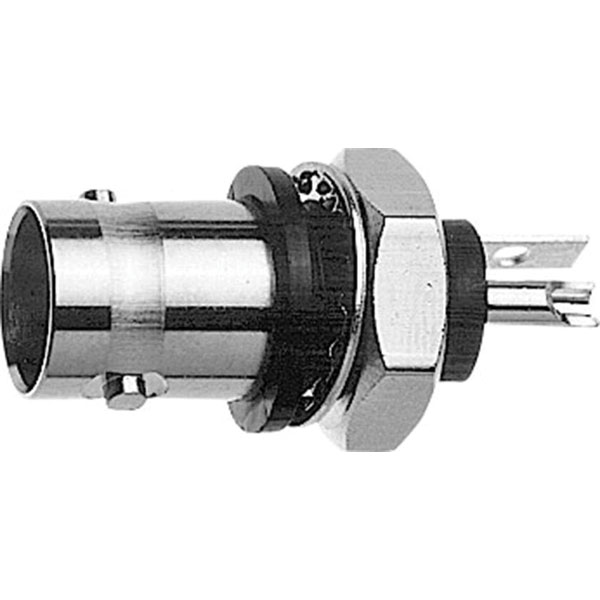

Telegärtner 100023577 BNC Socket built-in 75 Ω bayonet coupling 1pc

Image Representative of Range

Telegärtner 100023577 BNC Socket built-in 75 Ω bayonet coupling 1pc

Telegartner
Standard range
Order Code:

07-5889

Brand: Telegartner MPN: 100023577
Qty Unit Price (Ex VAT)
1+ £8.83
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

The Telegärtner BNC connector socket, part number 100023577, is designed for built-in applications and operates at 75 ohms. Known for its high-frequency capabilities, this connector is suitable for coaxial cable connections in telecommunications and broadcasting equipment. Its reliable performance makes it ideal for professional audio and video applications.
Impedance 75Ω
Type BNC connector
Case material Brass nickel plated
Connection Soldering
Connector type Socket, built-in
Contact material Brass gold plated
Front panel thickness 5mm
Insulation material PTFE
Manufacturer part # 100023577
Max. frequency 4GHz
Misc Attribute 100023577
Mounting hole diameter 8.85 m
RoHS-compliant Yes
Seal type Bayonet
Temperature range -40 - +155°C
