Telegärtner 100023697 TNC series Connector plug right angle 50 Ω 1pc

Image Representative of Range

Telegärtner 100023697 TNC series Connector plug right angle 50 Ω 1pc

Telegartner
Standard range
Order Code:

07-5935

Brand: Telegartner MPN: 100023697
Qty Unit Price (Ex VAT)
1+ £6.97
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
94 in stock, despatched in 4 working days

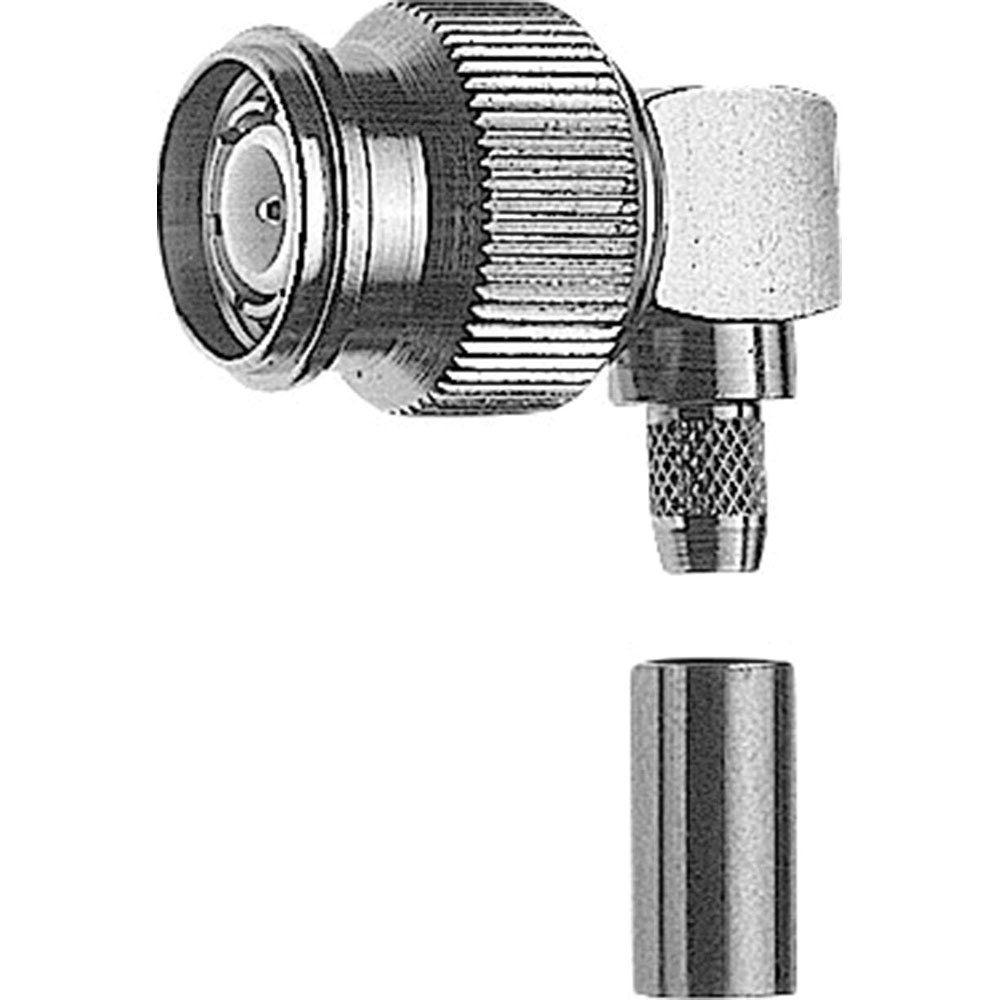

The Telegärtner TNC connector Plug is a right-angle coaxial connector with an impedance of 50 ohms. It is typically used in high-frequency applications such as antenna connections, where robustness and reliability are required. This specific part is ideal for integrating into various communication and RF equipment.
Impedance 50Ω
Type TNC connector
Cable Ø 5.20mm
Case material Brass nickel plated
Connection Crimp
Connector type Plug, right angle
Contact material Brass gold plated
Insulation material PTFE
Manufacturer part # 100023697
Max. frequency 11GHz
Misc Attribute 100023697
RoHS-compliant Yes
Seal type Screw-on
Temperature range -40 - +155°C
