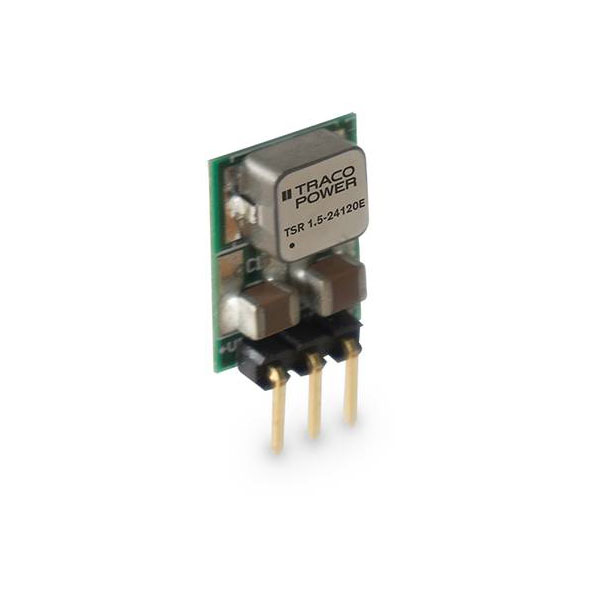

TracoPower TSR 1.5-24120E DC/DC Converter 12V 1A 1.5W 1 Pc

Name: TracoPower TSR 1.5-24120E DC/DC Converter 12V 1A 1.5W 1 Pc
Brand: TracoPower
Price: 3.63 GBP
Availability: InStock

Standard range

Order Code:

07-8406

Brand: TracoPower MPN: TSR 1.5-24120E

RoHS Compliant
Country of Origin: Taiwan
Free UK shipping available
View Full Product Range (6)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£3.63

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

8 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

TracoPower's TSR 1.5-24120E is a DC/DC converter providing 12 V DC output at 1 Amp and 1.5 Watts. This PCB mount power supply unit with solder lugs is ideal for use in printed circuit board applications. It is well-suited for equipping circuit boards with reliable power conversion solutions.

Type	DC/DC converter
Connection	Solder pins
Dim	(L x W x H) 19.37 x 10.0 x 6.45 mm
Efficiency (max.)	97%
Height	6.45mm
Input voltage (max.)	36.0V DC
Length	19.37mm
Max. output current	1A
Min. input voltage	15.0V DC
Misc Attribute 1	TSR 1.5-24120E
Misc Attribute 2	closed
No. of outputs	1
Operating temperature (max.)	85°C
Operating temperature (min.)	-40°C
Operating voltage	12 V
Output current (max.) - rounded	1A
Output current (min.)	0mA
Output voltage (max.)	12V DC
Output voltage (min.)	12V DC
Output voltages	+12.0V DC
Power	1.5W
Weight	2g
Width	10.0mm
