Vogt Connection Technology 3847.60 Blade Connector 6.3mm Width 0.8mm Thick

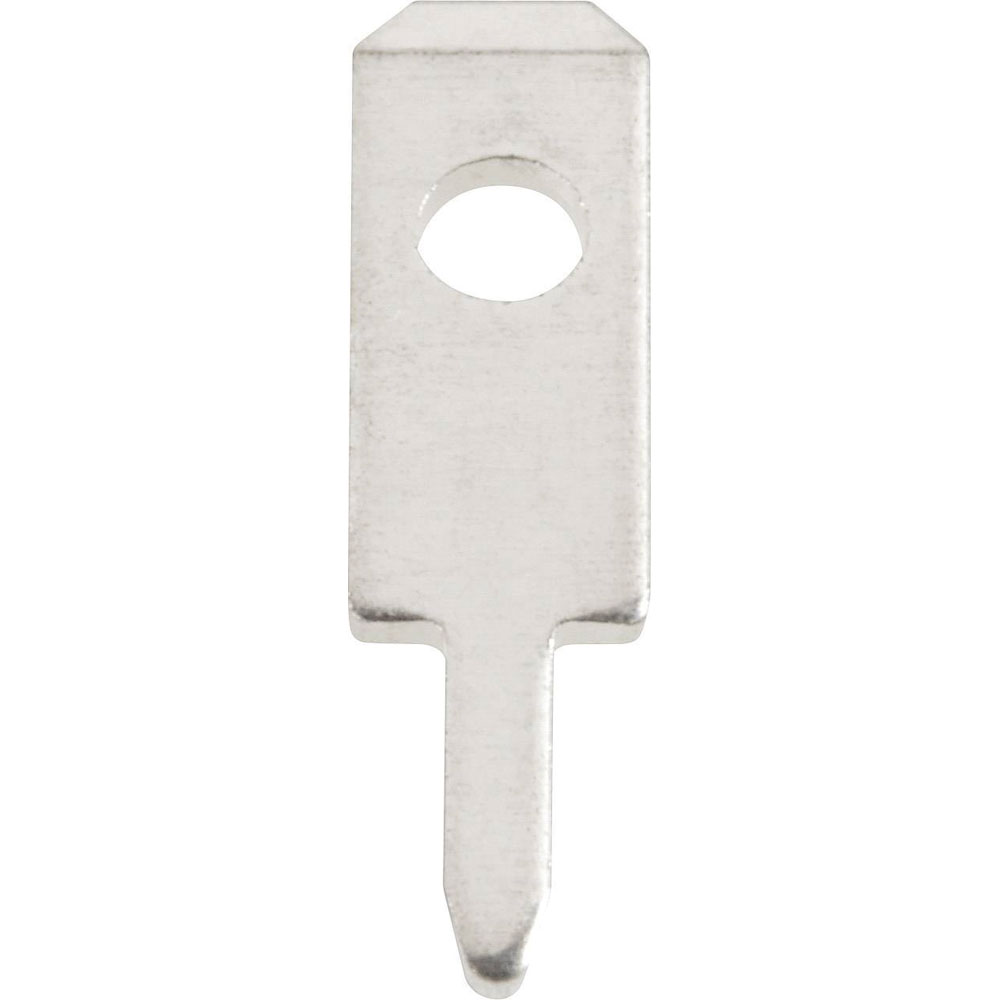

Image Representative of Range

Vogt Connection Technology 3847.60 Blade Connector 6.3mm Width 0.8mm Thick

Vogt Verbindungstechnik
Standard range
Order Code:

13-3911

Brand: Vogt Verbindungstechnik MPN: 3847.60 EAN-13: 2050000237560
Qty Unit Price (Ex VAT)
1+ £0.060
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
6,975 in stock, despatched in 4 working days

Manufactured by Vogt Verbindungstechnik, the 3847.60 blade connector has a width of 6.3 mm and a thickness of 0.8 mm. This non-insulated metal connector is commonly used in crimping applications where reliable electrical connections are critical. Ideal for automotive and electronic equipment, it ensures efficient conductivity and secure fastening with an M3 hole feature.
Connection angle 45°
Connection length 10.5mm
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass
Factory colour Metal
Hole Ø 3.2mm
Insulation type Not insulated
Manufacturer part # 3847.60
Material (details) Bronze Ms
Misc Attribute 1 6.3 x 0.8
Misc Attribute 2 3847.60
RoHS-compliant Yes
Size 6.3 x 0.8 mm
Support sleeve No
Surface Polished
Type Blade connector
