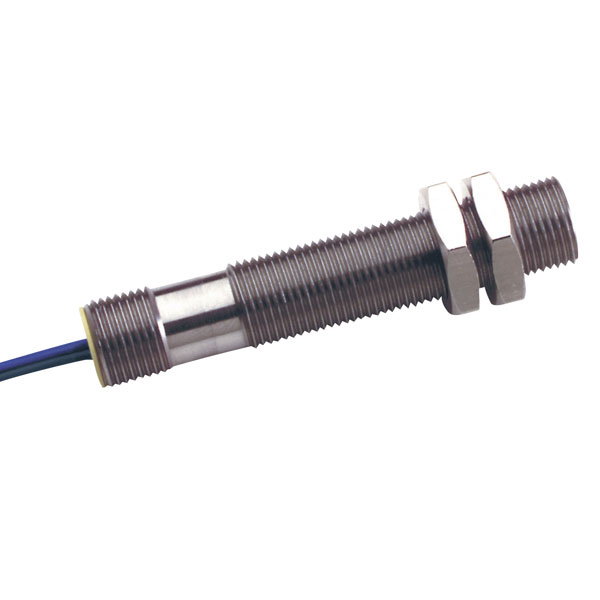

ZF GS1005/1007 Series Geartooth Speed Sensors Anodised Hall Effect

ZF Brand: ZF
<P>A range of geartooth speed sensors that use Hall Effect technology to sense the motion of ferrous geartooth targets. The sensor comes in an adjustable hard coat anodised stainless steel housing.</P><P>Strong performance features a near zero speed sensing capability and the 10-bit dynamic threshold detection gives an automatically adjusting magnetic range, self-compensation to target geometry and immunity to target run-out. Suitable applications include exercise equipment, food processing equipment, speedometers, etc.</P>
  • Available with a choice of barrel length and thread size
  • Termination via 22AWG x 1m cable
  • Immune to rotational alignment
  • Compatible with unregulated power supply
  • Reverse battery protected to -24V DC
  • Ø12mm x 65.5mm long
Description Image Product Buy Qty Pricing (Ex VAT) Type Housing Operating Temperature Supply Current Supply Voltage Termination
ZF GS100502 Anodized Hall Effect Gearspeed sensor M12-1 Thread with Lead
ZF GS100502 Anodized Hall Effect Gearspeed sensor M12-1 Thread with Lead
Standard range
Order code: 63-4658
MPN: GS100502

19 in stock, despatched in 4 working days
1+ £34.00
25+ £27.00
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Geartooth speed sensor Adjustable aluminium -40 to +125°C 6mA 5 to 24V 20AWG x 1m cable
ZF GS100701 Anodized Hall Effect Gearspeed sensor 15/32"-32 Thread with Lead
ZF GS100701 Anodized Hall Effect Gearspeed sensor 15/32"-32 Thread with Lead
Standard range
Order code: 63-4657
MPN: GS100701

33 in stock, despatched in 4 working days
1+ £32.40
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Geartooth speed sensor Adjustable aluminium -40 to +125°C 6mA 5 to 24V 20AWG x 1m cable
Operating voltage5 to 24V DC
Supply current6mA
OutputSink
Output saturation voltage400mV
Output current20mA
Operating temperature-40°C to +125°C
