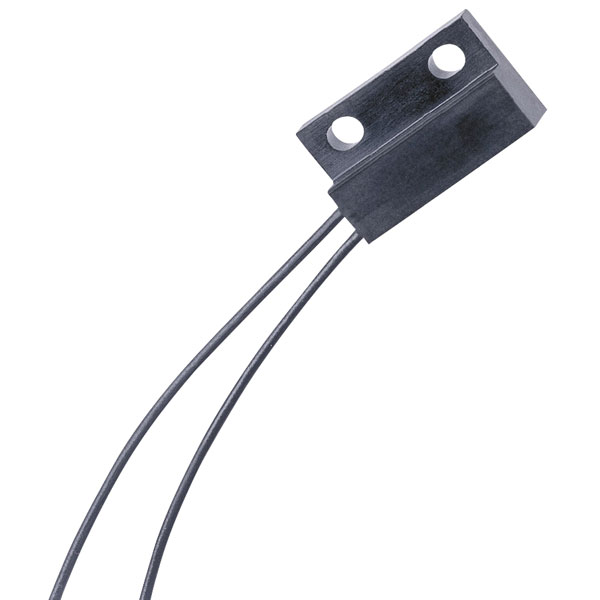

ZF MP2018 Series Reed Proximity Sensors Flange Mount with Cable

ZF Brand: ZF
<p>These Reed switch proximity sensors come in a plastic flange-mount housing that is resistant to moisture and dirt.<br/><br/> A standard magnetic actuator in the same housing is also available separately (see 63-0862).</p>
  • Choice of NO or NO configuration
  • Contacts hermetically sealed for long life
  • Terminated by 24AWG x 305mm leads
  • Dimensions (L x W x H) 23.01 x 5.99 x 13.97mm
Description Image Product Buy Qty Pricing (Ex VAT) Output Configuration Switching Current Switching Voltage AC Switching Voltage DC Contact Rating Sensing Range
ZF MP201801 NO Flange Mount Reed Proximity Sensor with Cable
ZF MP201801 NO Flange Mount Reed Proximity Sensor with Cable
Standard range
Order code: 63-4665
MPN: MP201801

89 in stock, despatched in 4 working days
1+ £4.39
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		SPST-NO 500mA 175V 175V N/A N/A
ZF MP201802 NC Flange Mount Reed Proximity Sensor with Cable
ZF MP201802 NC Flange Mount Reed Proximity Sensor with Cable
Standard range
Order code: 63-4666
MPN: MP201802

209 in stock, despatched in 4 working days
1+ £10.00
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		SPST-NC 200mA 30V 30V N/A N/A
Order code63-466563-4666
Contact form1 Form A1 Form B
Power rating10W3W
Switching voltage175V AC/DC30V AC/DC
Breakdown voltage200V DC200V DC
Switching current0.5A0.2A
Contact resistance0.2Ω0.1Ω
Operate time1ms1ms
Operating temperature range-40°C to +105°C-40°C to +105°C
