BKL 1506131 Spiral Cable H07BQ-F 800/3200mm 5G 2.50mm² Orange

Standard range

Order Code:

01-5997

Brand: BKL MPN: 1506131 EAN-13: 4011376759627

RoHS Compliant
Country of Origin: Germany
Free UK shipping available
View Full Product Range (18)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£78.91

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

3 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

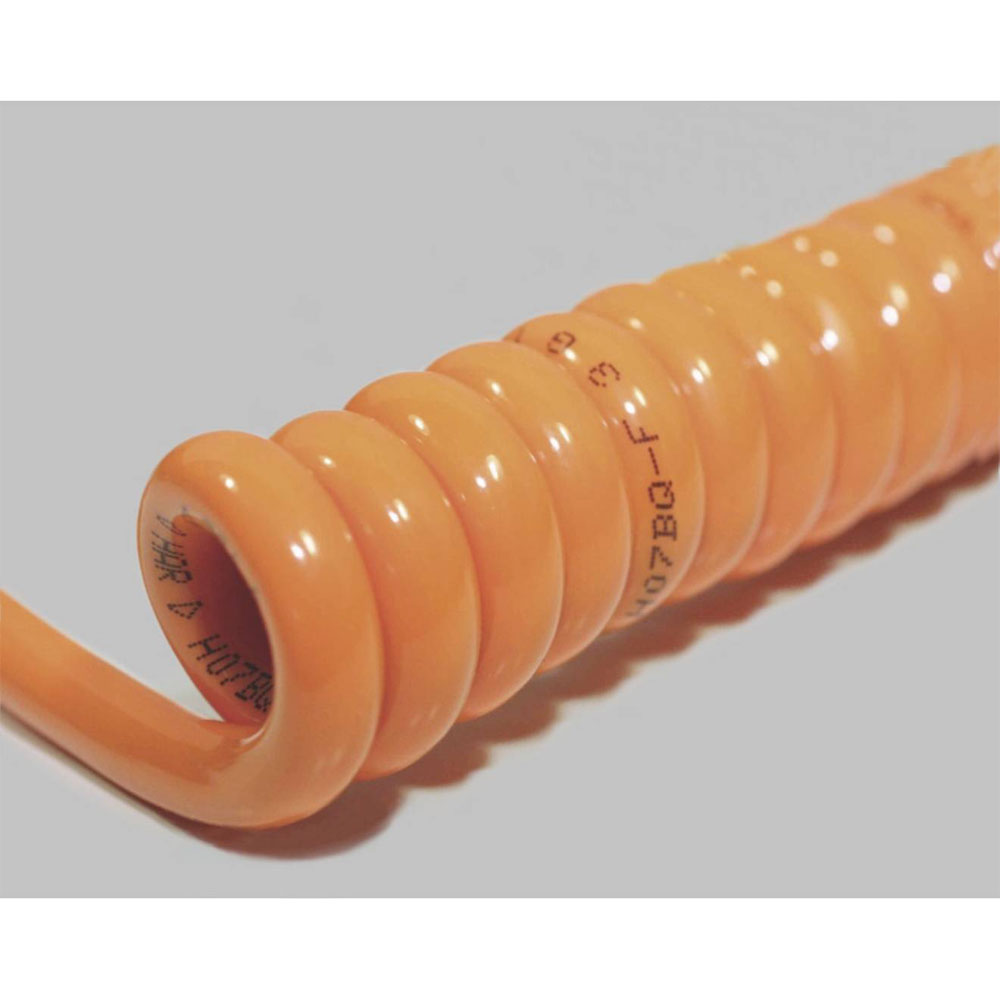

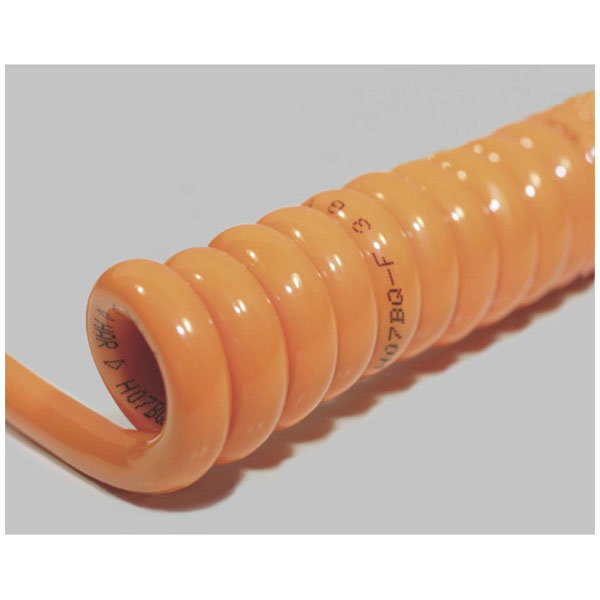

The BKL Electronic 1506131 Spiral cable is an orange, flexible cord designed for robust applications. It extends from 800 mm to 3200 mm and includes five 2.50 mm² conductors. Ideal for dynamic environments, this cable is suitable for use in machinery and equipment requiring frequent movement.

Type	Spiral cable
Cable features	Flexible
Cable type	H07BQ-F
Cross section	5 G 2.50 mm²
Cross section (each core)	2.50mm²
Factory colour	Orange
Halogen-free	Yes
Max. temperature range (fixed installation)	+90°C
Min. temperature range (fixed installation)	-40°C
No. of leads	5 G
Nominal voltage	750V
Nominal voltage U0	450V
RoHS-compliant	Yes
Shielded	No
Spiral lenght (max.)	3200mm
Spiral length (min.)	800mm
