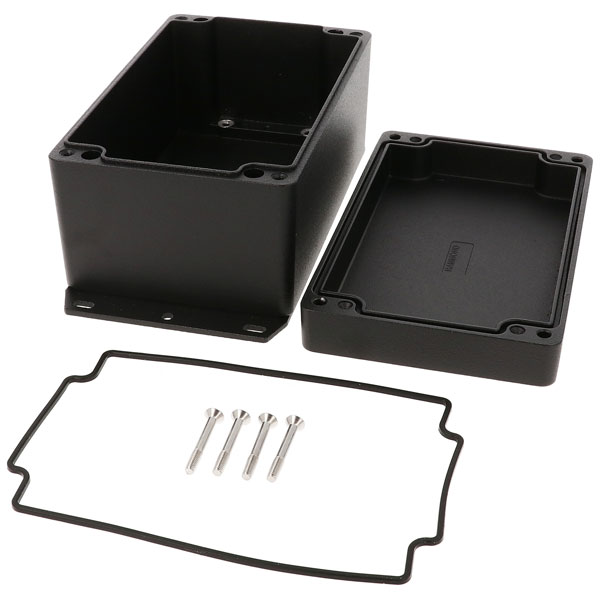

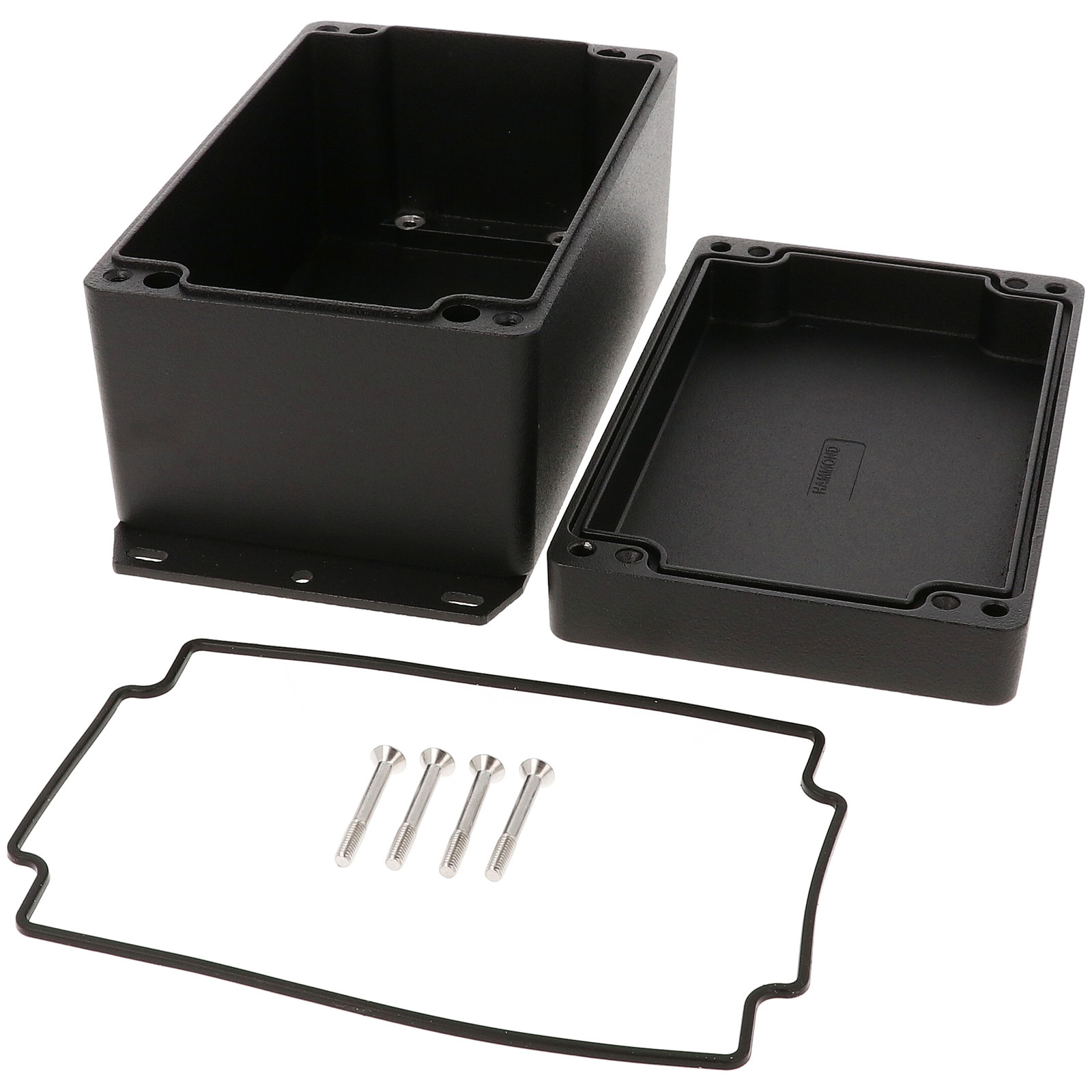

Watertight, Die Cast Aluminium Enclosures - Hammond 1550Z117FBK is a robust thick wall die cast enclosure designed for durability and protection of electronic components. Measuring 160 mm in length, 100 mm in width, and 81 mm in height, this enclosure features a flanged design that facilitates easy mounting and installation.
Rugged diecast aluminium alloy is tough yet easy to machine.
Two piece tongue and groove construction for protection against access of dust and water.
Strong spot-welded bottom flange allows for easy mounting.
Unpainted version is vibra finished for a smooth surface with no sharp edges.
Textured black version is coated with tough polyester powder for a lasting finish, even after machining. Finish is applied outside and inside the enclosure.
Lid is secured with either two, four, or six stainless steel Philips head machine screws, depending on enclosure size.
Lid screws are outside the gasket protection area to eliminate the need for O-rings.
Gasket is pre-formed, one-piece silicone rubber and installs easily into lid groove.
Gasket has a temperature rating of -40°C to +150°C (-40°F to 302°F).
cUL and UL listed under file #E71073.
Independently tested to meet IP68 as well as NEMA Type 4, 4X, 12 and 13 ratings.
All sizes except 1550Z101F carry an impact rating of IK08 per IEC62262.
