Hammond 1550Z220FBK Thick Wall Flanged Die Cast Enclosure, 223 x 147 x 83, Black

Standard range
Order Code:

31-1925

Brand: Hammond MPN: 1550Z220FBK EAN-13: 623980023922
Qty Unit Price (Ex VAT)
1+ £50.45
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
10 in stock, despatched in 2 working daysBack-order availability date - 27/07/2025

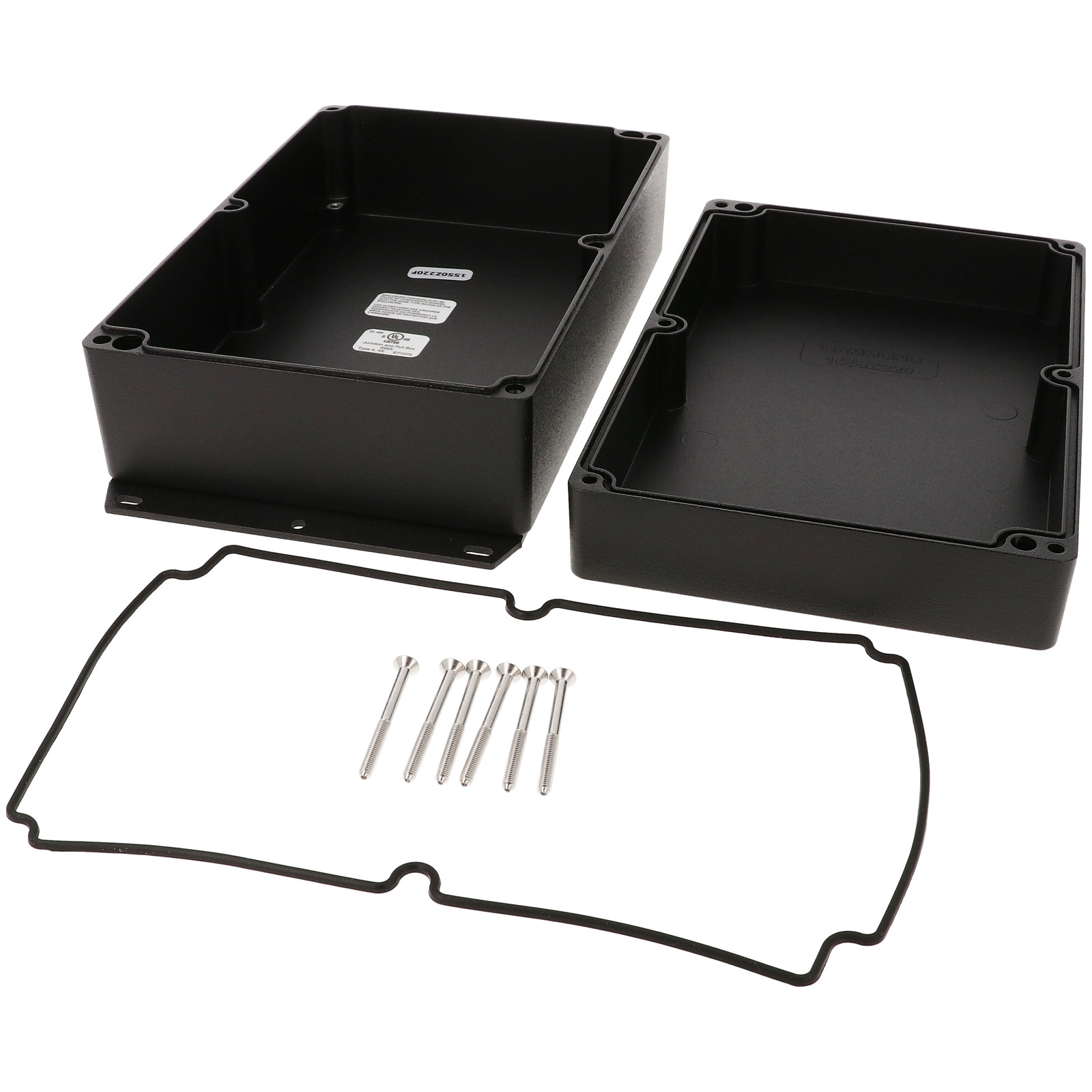

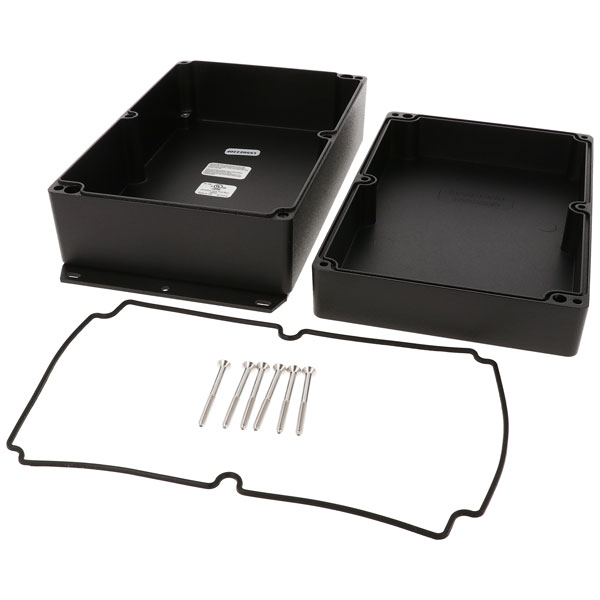

Watertight, Die Cast Aluminium Enclosures - Hammond 1550Z220FBK is a robust thick wall flanged die-cast enclosure designed for various electronic applications that require durability and protection. Measuring 223 x 147 x 83 mm, the enclosure is crafted from high-quality aluminum, providing excellent strength and resistance to environmental factors.
  • Thick-wall diecast aluminium watertight electronic instrument enclosure.
  • Rugged diecast aluminium alloy is tough yet easy to machine.
  • Two piece tongue and groove construction for protection against access of dust and water.
  • Strong spot-welded bottom flange allows for easy mounting
  • Unpainted version is vibra finished for a smooth surface with no sharp edges.
  • Textured black version is coated with tough polyester powder for a lasting finish, even after machining. Finish is applied outside and inside the enclosure.
  • Lid is secured with either two, four, or six stainless steel Philips head machine screws, depending on enclosure size.
  • Lid screws are outside the gasket protection area to eliminate the need for O-rings.
  • Gasket is pre-formed, one-piece silicone rubber and installs easily into lid groove.
  • Gasket has a temperature rating of -40°C to +150°C (-40°F to 302°F).
  • cUL and UL listed under file #E71073
  • Independently tested to meet IP68 as well as NEMA Type 4, 4X, 12 and 13 ratings
  • All sizes except 1550Z101F carry an impact rating of IK08 per IEC62262.
Type Die Cast Enclosure
