The Raspberry Pi Debug Probe SC0889 is an inexpensive, all-in-one USB to
serial debug and UART bridge. It provides the necessary hardware and
cabling to support "plug and play" debugging of Raspberry Pi Pico and
other microcontroller- and microprocessor-based platforms.
The Raspberry Pi Debug Probe provides both a processor serial debug
interface (default is the ARM Serial Wire Debug interface) and
an industry-standard UART interface. Both interfaces use the Raspberry Pi 3-pin debug connector, as specified in the Raspberry Pi 3-pin debug
connector specification.

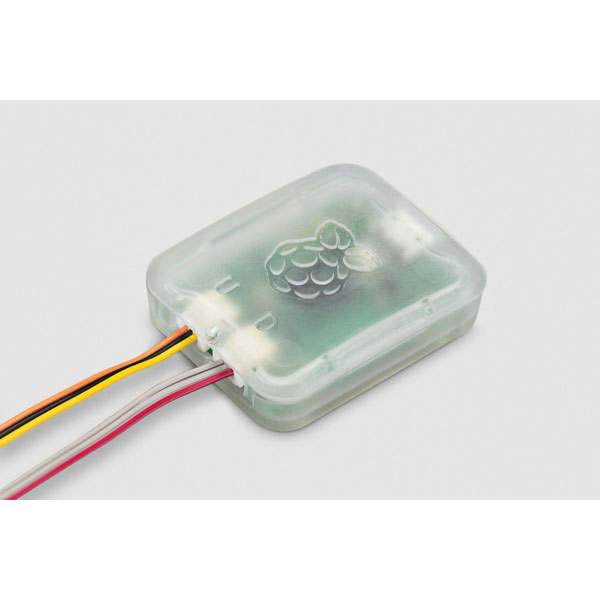

The Raspberry Pi Debug Probe is provided as a kit, containing the
probe hardware in its own plastic case, and a set of cables: a USB cable, and
three different types of debug cable, to cover the vast majority of debug use
cases.
Designed for easy debugging and programing of Raspberry Pi Pico and RP2040 with a range of host platforms, including Windows, Mac, and Linux.
While it has been designed primarily for use with Raspberry Pi debug
targets, the Debug Probe provides standard CMSIS-DAP debug and
UART interfaces over USB and can be used with other processors, or simply as a cost-effective USB-to-UART cable.
Based on the Raspberry Pi Pico
hardware design, the Raspberry Pi Debug Probe runs the open-source Raspberry Pi Picoprobe
software (https://github.com/raspberrypi/picoprobe). It is straightforward to keep the unit up to date with the latest
Picoprobe firmware, or to use a custom firmware, as updating the firmware is done in the same way as on a Raspberry Pi Pico.
- Provided as a kit
- Manufacturer's Part: SC0889
| Type |
Raspberry Pi Debug Probe kit |
