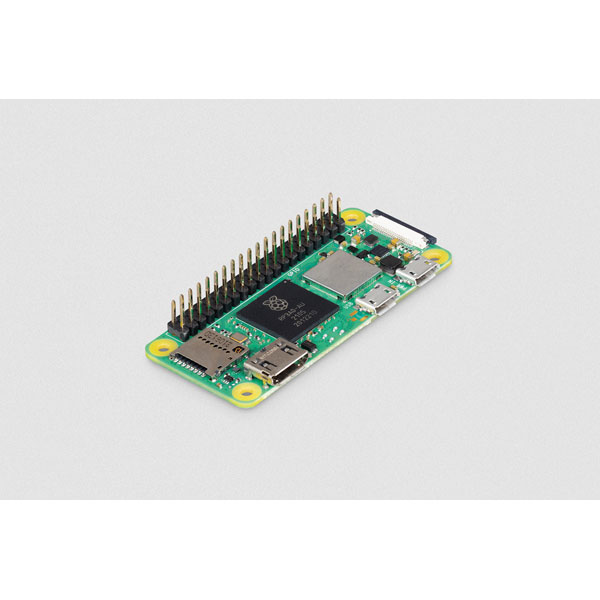

The Raspberry Pi Zero 2 W with Header is built around a Raspberry Pi-designed System-in-Package, which integrates the BCM2710A1 die. Powered by a quad core 64-bit ARM processor and 512MB of SDRAM, the Zero 2 is five times faster than the original Raspberry Pi Zero - all built into the same tiny form factor, making it perfect for a range of smart home applications and Internet of Things (IoT) projects.
Raspberry Pi Zero 2 W is footprint-compatible with earlier members of the Raspberry Pi Zero family, allowing for easy upgrades.
This model Raspberry Pi SC0721 Zero 2 W comes with a 40-pin GPIO header pre-installed for easy connections.
- 1GHz 64-bit quad-core Cortex A53 processor
- 512MB SDRAM
-
2.475-0304GHz 802.11b/g/n WiFi with shielded enclosure
-
Bluetooth 4.2 Low Energy (BLE) with onboard antenna
- MicroSD card slot
- CSI-2 camera connector
- Mini HDMI port
- USB 2.0 OTG port
- Micro USB port
-
OpenGL ES graphics V1.1, 2.0
- H.264 MPEG-4 decode (1080p Full HD @30fps),
- H.264 encode (1080p Full HD @30fps)
- Pre-installed, HAT-compatible 40-pin GPIO header
-
Board Dimensions: 65x30mm
| Type |
Raspberry Pi Zero 2 WH |
| Processor |
64-Bit Quad-Core |
| Memory (RAM) |
512MB |
| Wireless |
2.4GHz |
| Bluetooth |
4.2 / BLE |
| PCB Dimensions |
65 x 30mm |
| Ports |
1 x Micro-USB, 1 x USB OTG, 1 x mini-HDMI, 1 x micro-SD |
| Power supply |
5V 2.5A Micro USB |
| Video Resolution |
1080p30 |
