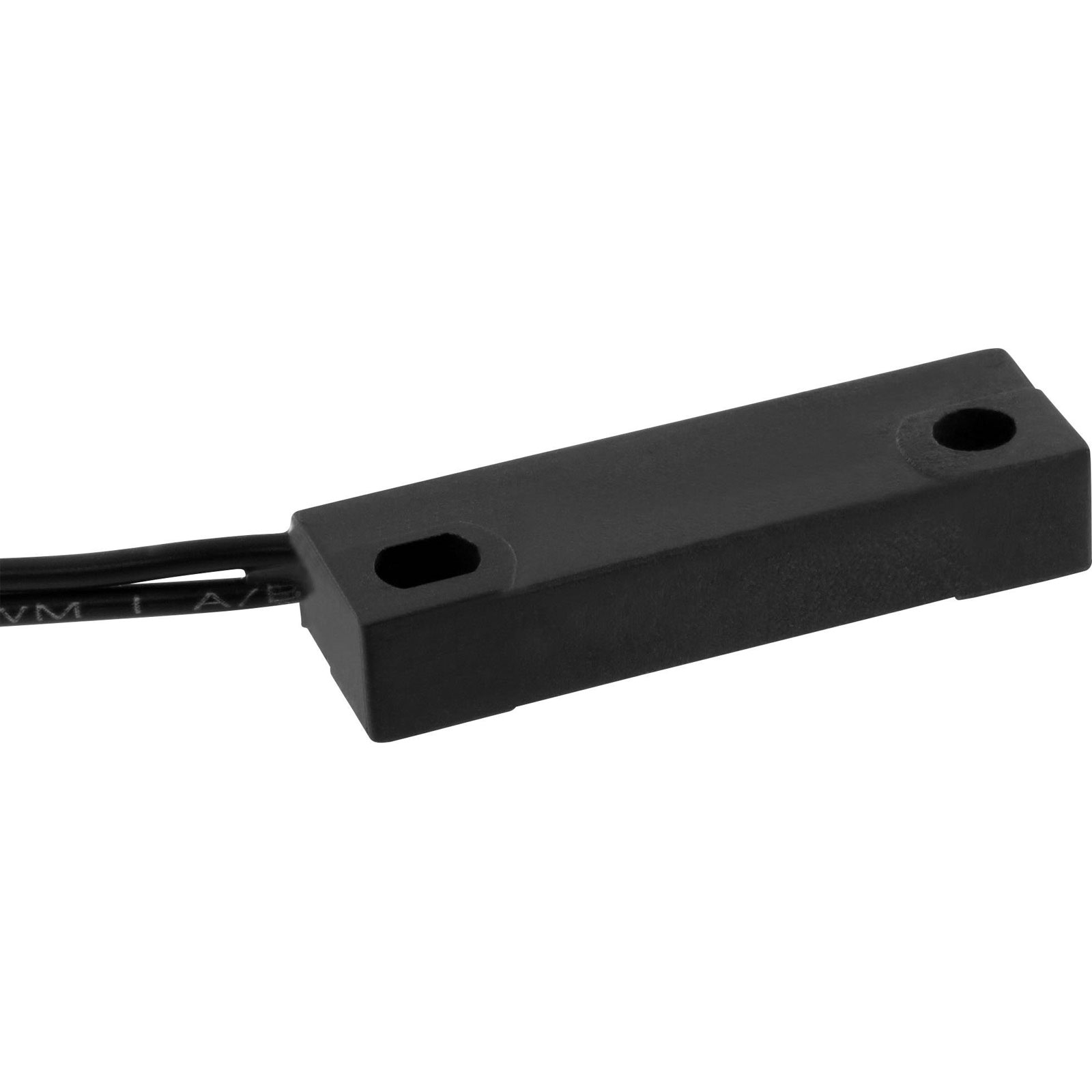

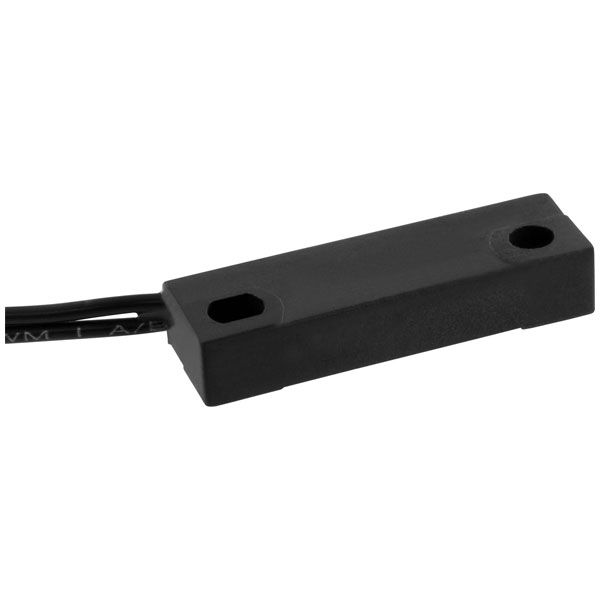

StandexMeder 9263851054 MK26-1A85C-500W Reed Switch 1000V 1A 100W Sensor

StandexMeder Electronics
Standard range
Order Code:

10-6908

Brand: StandexMeder Electronics MPN: 9263851054 EAN-13: 2050003801126
Qty Unit Price (Ex VAT)
1+ £5.37
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
214 in stock, despatched in 4 working days

StandexMeder Electronics manufactures the MK26-1A85C-500W reed switch, rated for 1000 V DC and AC, 1 A, and 100 W. This reed switch is ideal for applications requiring reliable contact functions, such as in automotive or security systems. Typical uses include acting as a door contact or sensor in electrical circuits.
Type Reed switch
Cable length 0.50m
Connection Open end cable
Contact type 1 maker
Dim (L x W x H) 32 x 10 x 6 mm
Enclosure material PBT
Height 6mm
Length 32mm
Max. switching capacity 100W
Max. temperature 80°C
Min. temperature -5°C
Misc Attribute MK26-1A85C-500W
Switching current (max.) 1A
Water activity 15 - 20
Water activity (max.) 20
Water activity (min.) 15
Width 10mm
