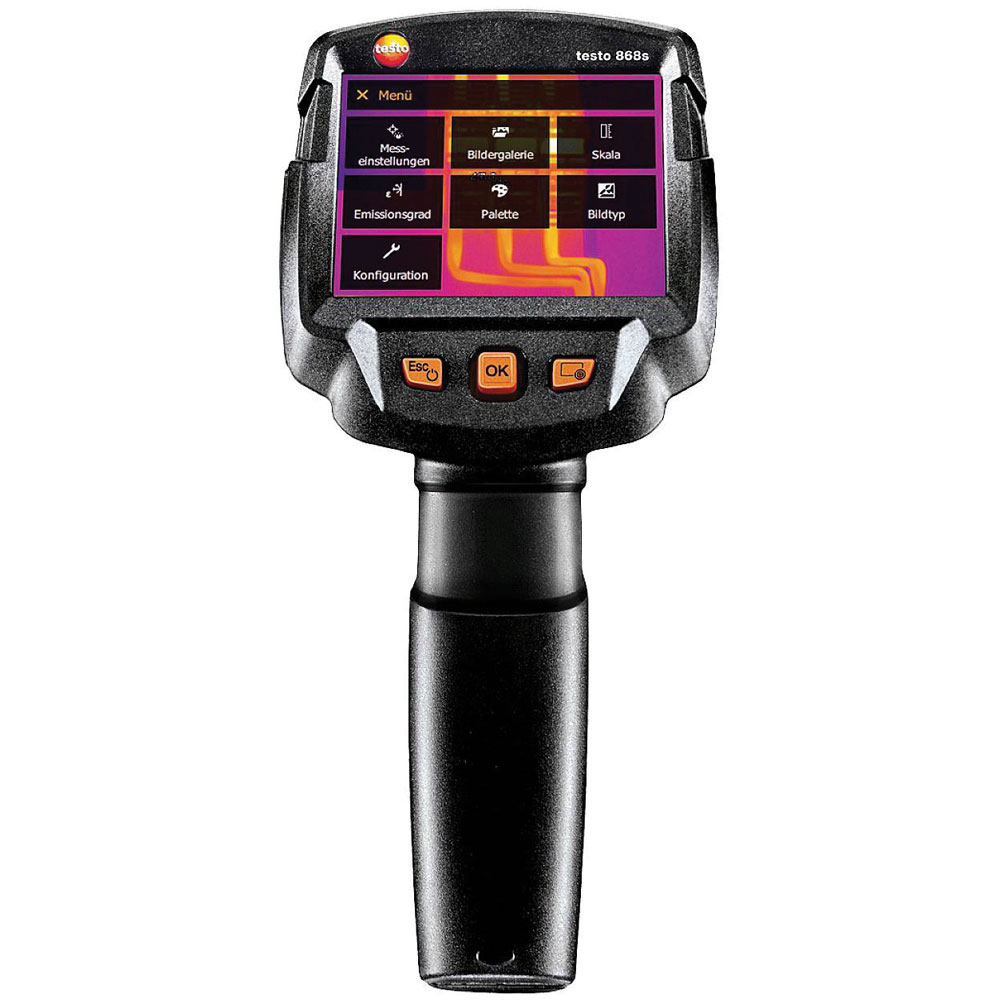

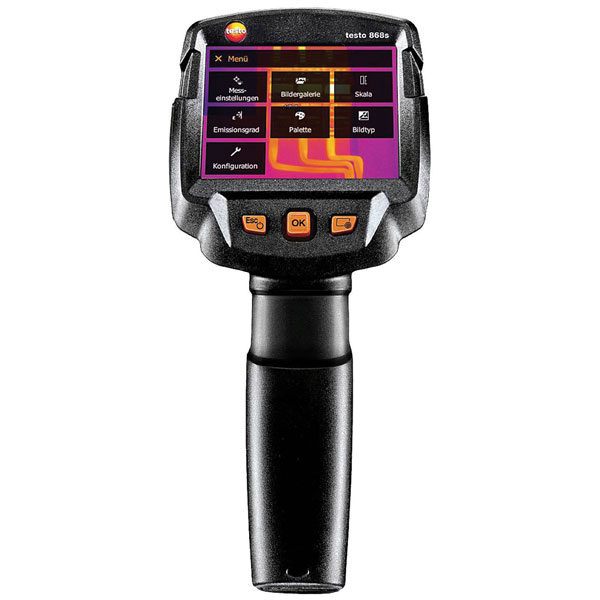

Testo 0560 8684 Testo 868s IR camera, -30 to +650 °C, 160x120 px

The infrared camera Testo 868s is a thermal camera, which makes the work faster and easier - with professional thermal imaging technology. Its useful features enable you to create accurate and objectively comparable infrared images. With the IFOV-Warner, the Testo E-Assist and the Testo ScaleAssist you avoid measuring errors and set the emission level (E) as well as the reflected temperature (RTC), and the colour scale in the building thermography optimally.

The infrared camera Testo 868s ensures a wireless communication with your mobile devices via WLAN. With Testo Thermography app for iOS and Android, you can create, send and store reports on-site, and use your tablet or smartphone as a second display or remote control.

The infrared camera Testo 868s can be used for detecting leaks, detecting overheated connections, locating thermal bridges or detecting structural defects. The Testo 868s infrared camera was developed for applications around daily maintenance and installation in crafts and industry. This means that you can work quickly and safely in detecting defects and in maintenance. The infrared camera Testo 868s fits well in the hand and provides intuitive use, in modern tile optics and thermal imaging technology.

High resolution provides good image quality. With the Testo Thermography App, create reports on site, save online as well as send via e-mail and use mobile devices as second display or remote control.

The integrated digital camera creates a real image parallel to the thermal image. The Testo ScaleAssist automatically adjusts the thermal imaging scale optimally, so you can create objectively comparable and error-free thermal images, for example, of the thermal insulation behaviour of buildings. The Testo E-Assist ensures a correct measurement result by automatically determining and setting the emission level and the reflected temperature. With the IFOV-Warner the distance to the object to be measured/measuring spot size is determined and the measuring spot is displayed on the thermal image - this prevents measuring errors, because the camera shows you exactly what is to be measured. With the free professional software IRSoft you can analyse your pictures on a PC and create professional reports. Thermal images can be saved as JPEG files.

Type	IR camera
Accuracy ± °C	2°C
Basic accuracy	2%
Bolometer array	160 x 120 Pixel
Colour schemes	4
Dim	(L x W x H) 219 x 96 x 95 mm
Display	TFT 8.9cm
Display resolution	320 x 240 Pixel
Emission level (max.)	1
Emission level (min.)	0.01
Focus	Fixed-focus
Frame rate	9Hz
Geometric resolution (IFOV)	3.4mrad
Height	95mm
IP rating	IP54
Length	219mm
Min. focusing distance	0.5m
Misc Attribute	868s
Optics	31° x 23°
Temperature reading range	-30 up to +650 °C
Temperature reading range (max.)	+650°C
Temperature reading range (min.)	-30°C
Temperature resolution	0.08°C
Thermal sensitivity	80 mK
Weight	510g
Width	96mm
