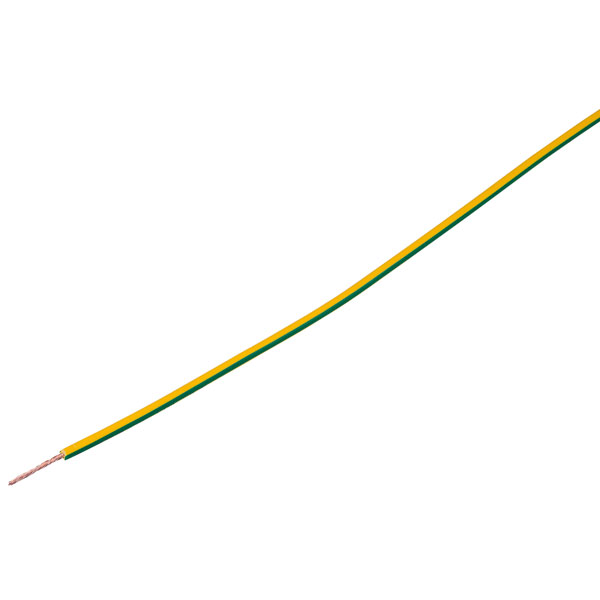

UniStrand H05Z-K 0.75mm² Green/Yellow Equipment Wire 100M reel

Equipment wire with low smoke, zero halogen (LSZH) insulation, ideal for panel wiring for appliances with a maximum operating temperature of 90°C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment.

The cable produces no corrosive gases when burnt, which is particularly important where electronic equipment is installed.

• Conductor cross-section: 0.75mm²
• Colour: green/yellow
• Conductor: class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360)
• Insulation: LSZH (Low Smoke Zero Halogen) Type EI5 thermosetting insulation according to BS EN 50363
• Voltage rating (Uo/U): 300/500V
• Temperature rating -25°C to +90°C
• Minimum bending radius: 4x overall diameter
• Standards:
• BS EN 50525-3-41 (previously BS 7211 Table 3 and 4b CENELEC HD22.9)
• BS EN/IEC 60332-1-2
• BS EN/IEC 50267-2-1
• BS EN/IEC 60754
