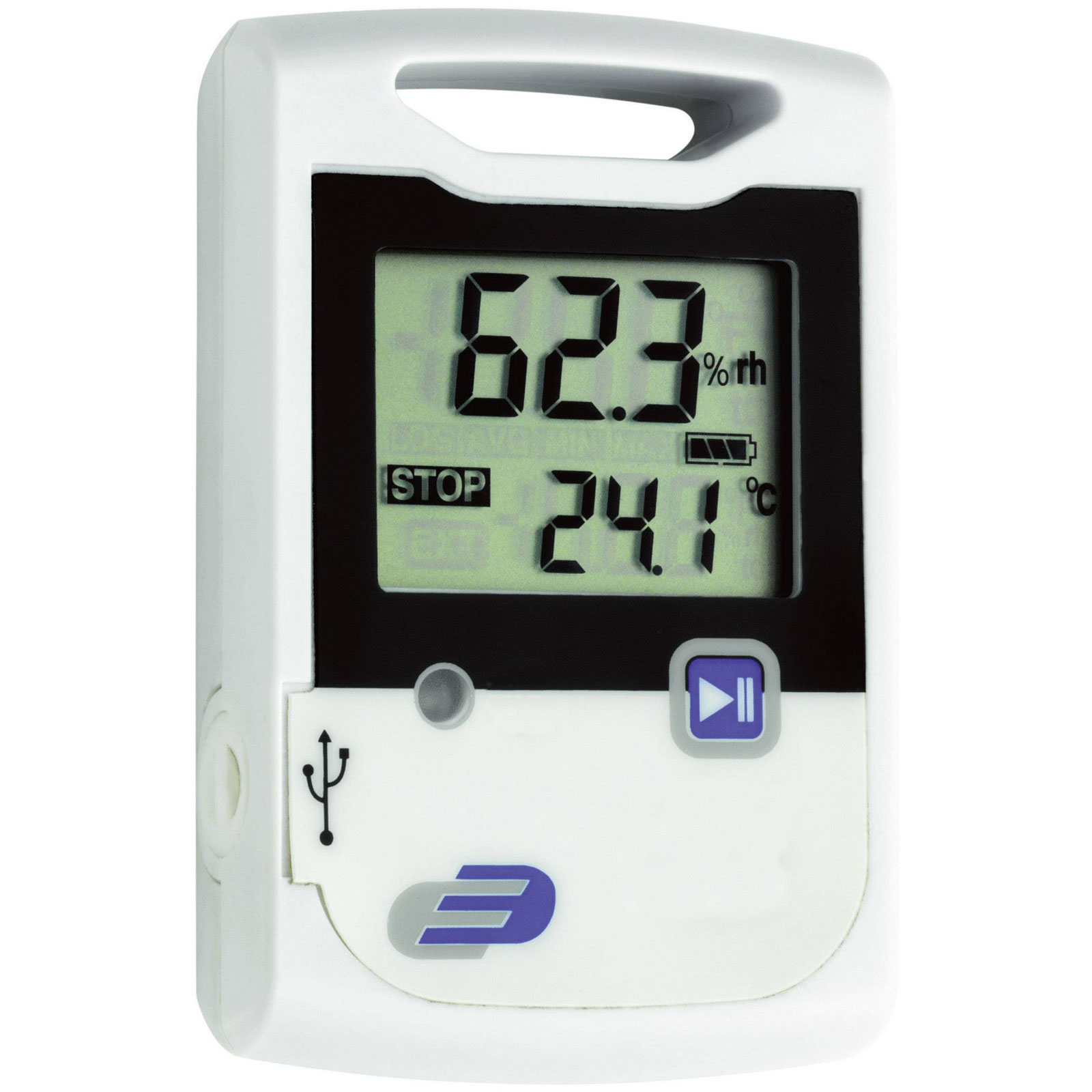

The Dostmann Electronic 5005-0002 LOG20 is a multi-channel data logger designed for long-term recording of temperature and humidity. It operates in a range of -30 to 60 °C and 0 to 99% RH, making it ideal for continuous monitoring in various climate conditions. Typical applications include climate data logging in laboratories, storage facilities, and environmental studies.
| Type |
Multi-channel data logger |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Casing |
Plastic (ABS) |
| Channels |
2 |
| Depth |
20mm |
| Dim |
(L x W x H) 20 x 55 x 88 mm |
| Height |
88mm |
| Humidity reading accuracy |
±3 RH |
| Humidity reading range |
0 - 99 RH |
| Humidity reading range (max.) |
99 RH |
| Humidity reading range (min.) |
0 RH |
| Interfaces |
USB |
| Length |
20mm |
| Memory |
2 x 20000 |
| Memory (readings) |
20000 |
| Misc Attribute |
LOG20 |
| Power supply |
CR 2032 button cell (1x) |
| Power supply (details) |
Lithium battery (CR2032) |
| Reading accuracy temperature |
0.5°C |
| Reading range |
Temperature/humidity |
| Sample rate (max.) |
24h |
| Sample rate (min.) |
30s |
| Sampling interval |
30 s - 24 h |
| Sensor |
NTC |
| Temperature accuarcy (details) |
± 0.5 °C |
| Temperature reading range |
-30 up to 60 °C |
| Temperature reading range (max.) |
60°C |
| Temperature reading range (min.) |
-30°C |
| Temperature resolution |
0.1°C |
| Weight |
95g |
| Width |
55mm |
