FESTO 19230 DSNU Round Cylinder Aluminium 50mm Stroke Length
Standard range
Order Code:
Brand:
FESTO
MPN: 19230 03-2569
- RoHS Compliant
- Country of Origin: Germany
- Free UK shipping available
- View Full Product Range (32)
| Qty | Unit Price (Ex VAT) |
|---|---|
| 1+ | £46.21 |
Price per unit Ex VAT

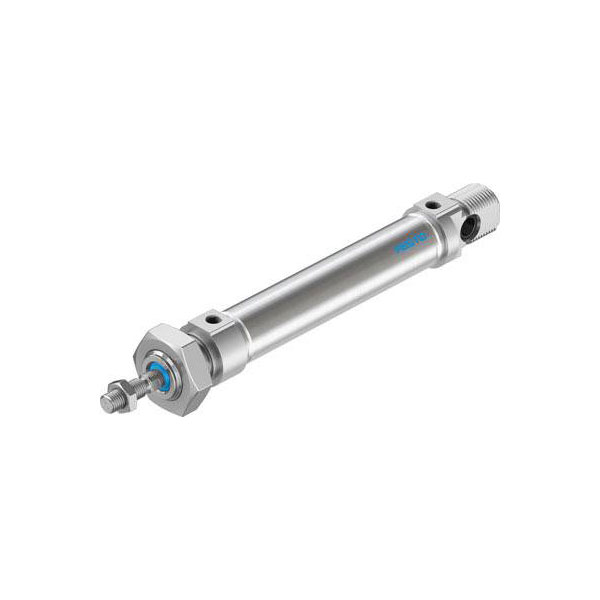

Festo manufactures the DSNU-16-50-PPV-A round pneumatic cylinder with an aluminium wrought alloy enclosure. It features a stroke length of 50 mm, making it suitable for precise linear motion applications. This cylinder is typically used in industrial automation and machinery.
| Type | Round cylinder |
|---|---|
| Enclosure material | Aluminium wrought alloy |
| Force (max.) | 120.6N |
| Manufacturer part # | 19230 |
| Max. ambient temperature | +80°C |
| Max. operating pressure | 10bar |
| Min. ambient temperature | -20°C |
| Min. operating pressure | 1bar |
| Operating medium | According to ISO 8573-1:2010 compressed air [7:4:4] |
| Operating principle | Double-acting |
| Piston diameter | 16mm |
| Piston rod material | Steel |
| Piston rod thread | M6 |
| Pneumatics connector | M5 |
| Stroke length | 50mm |
| Weight | 89.9g |
