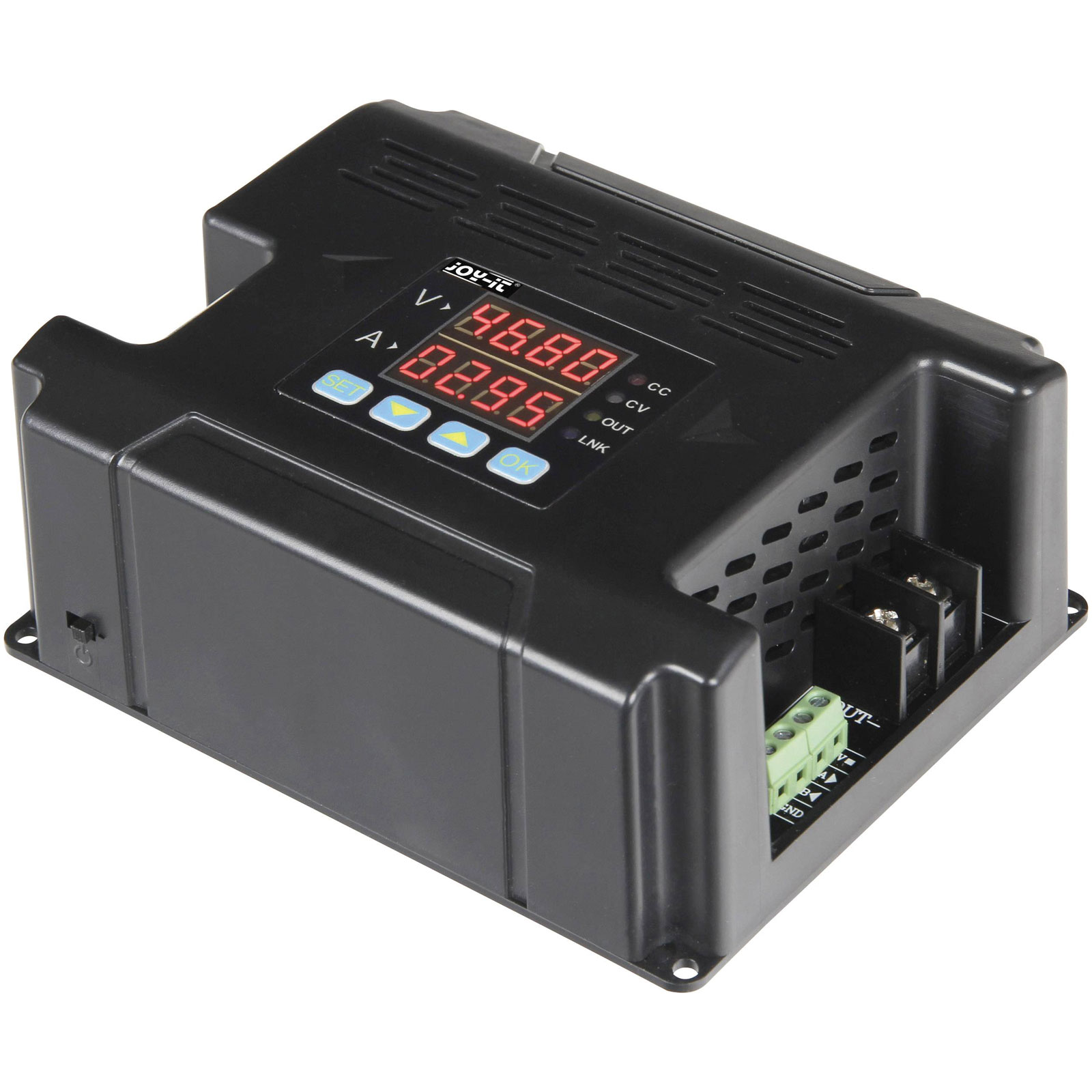

Joy-it DPM8624 Power Supply unit 0-60V 1400W programmable with remote control

The DPM 8600 series of power supplies are programmable power supplies, which are a high output, very compact and optimally designed. Furthermore, it is equipped with a RS485 communication interface, which provides it with a serial communication protocol. It can also be used with Modbus-RTU communication protocol and supports the further development of own protocols. It even offers a multi-purpose solution for design and testing requirements. The DPM8600er can also be used with a wireless remote control. This remote control has a 2.4” LCD screen. It has many display values, a simple operation, a built-in lithium battery, which can be recharged and a range of up to 10 meters. The special feature is that several power supplies can be controlled at the same time. This power supply can be used in various applications. It can be used, for example, as an ammeter, a smart meter, an LED driver, voltage regulator for solar systems or in an industrial control.

Type	PSU
Calibrated to	Manufacturer's standards (no certificate)
Connections	RS 485
Dim	(L x W x H) 112 x 131 x 55 mm
Height	55mm
Length	112mm
Max. output current	24A
Max. temperature	45°C
Min. temperature	-10°C
Misc Attribute	DPM8624
No. of outputs	1
Output	2-wire
Output current (min.)	0mA
Output voltage (max.)	60V
Output voltage (min.)	0V
Power	1400W
Residual ripple	<50 mVpp
Technology	SMPSU
Width	131mm
