PJP 9025Cd10N 2A Black 10m Coil Silicone Test Cable

PJP
Order Code:

01-0654

Brand: PJP MPN: 9025Cd10N EAN-13: 3760122594951

  • Quickly find another product in this range by Colour:

    Black Blue Green Red White
Qty Unit Price (Ex VAT)
1+ £13.82
10+ £11.94
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched same dayAdditional quantity lead time 7 days

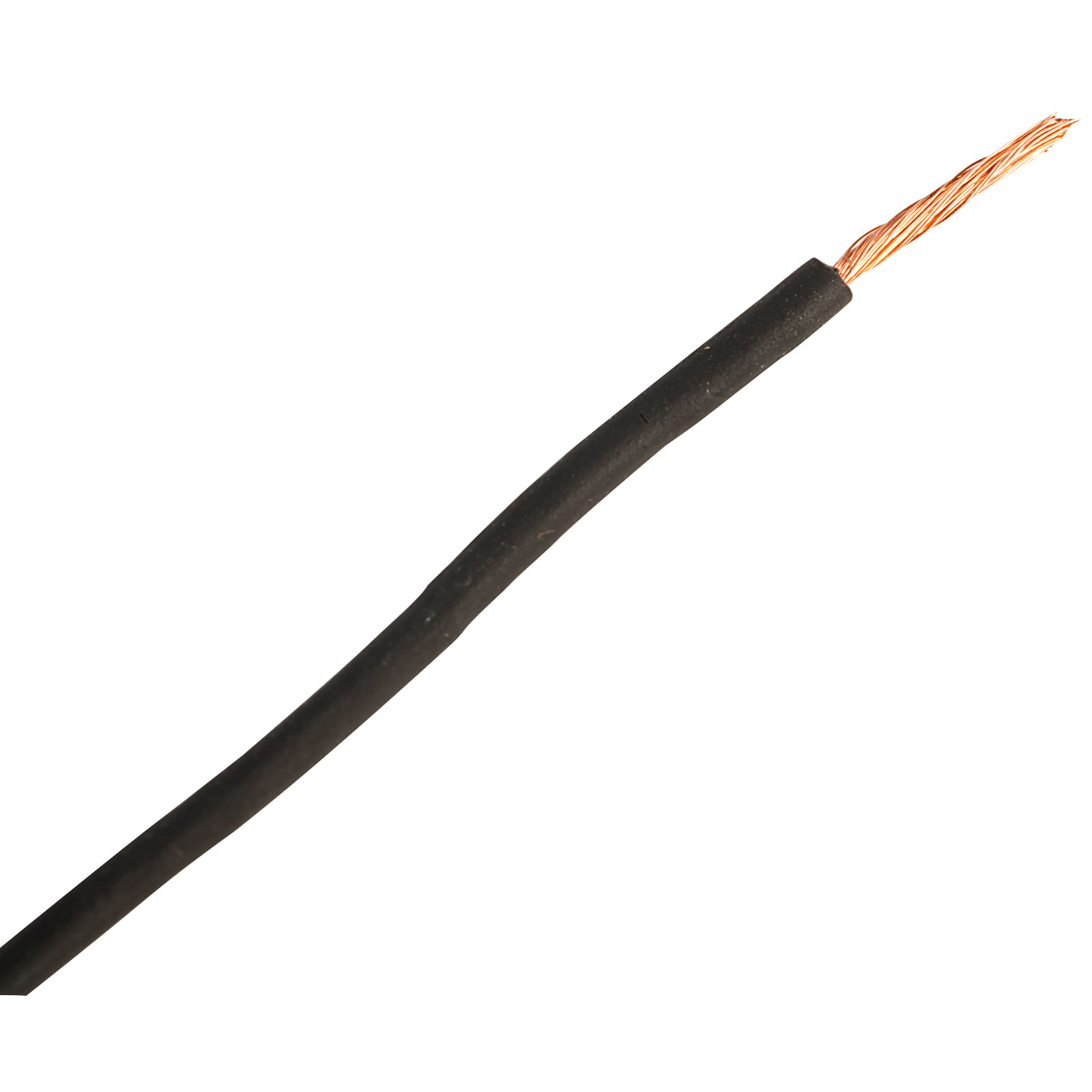

High quality flexible black silicone cable from PJP, ideal for use in test leads.


  • Ideal for use in areas where large variations in temperatures occur
  • Copper conductor 7x 0.20mm, 0.22mm²
  • Maintains its flexibility and strength
  • Maximum current rating 2A
  • Temperature rating –60°C to +180°C
  • Cable diameter 1.4mm
  • Supplied on reels of 10m
Cable Diameter 1.4mm
Colour Black
Conductor Stranding 7x0.2mm
Current Rating 2A
Length 10m
Type Extra flexible

To use this facility please Sign In.

Sign In

Questions

*Question functionality currently disabled
Thursday, December 7, 2017 | Question by: Rapid Customer | Product code: 01-0654
Q. Can you please verify the strand count on this wire? I have PJP 2A silicone cable from you in the past which is 7 strand, which is great, but the last lot labelled 9025CD10N was more like 30 strand and super fine, which doesn't have the rigidity I'm after. Thanks.
A. Hi Tom, thank you for your question. According to the data sheet the 9025 range is the type 4 rated at 2A with 7 x 0.2mm stranding. The higher current versions normally have many more finer strands.

Reviews

Great flexibility multi-strand cable.

Reviewed by: Steve Hills - Saturday, September 28, 2019
This cable is specified as 56 Strands of 0.2mm wire in a silicon sheath. The flexibility is great and the high number of small strands make it reliable. I use it for all my finger trigger connections on my range of TruSpeed controllers.
