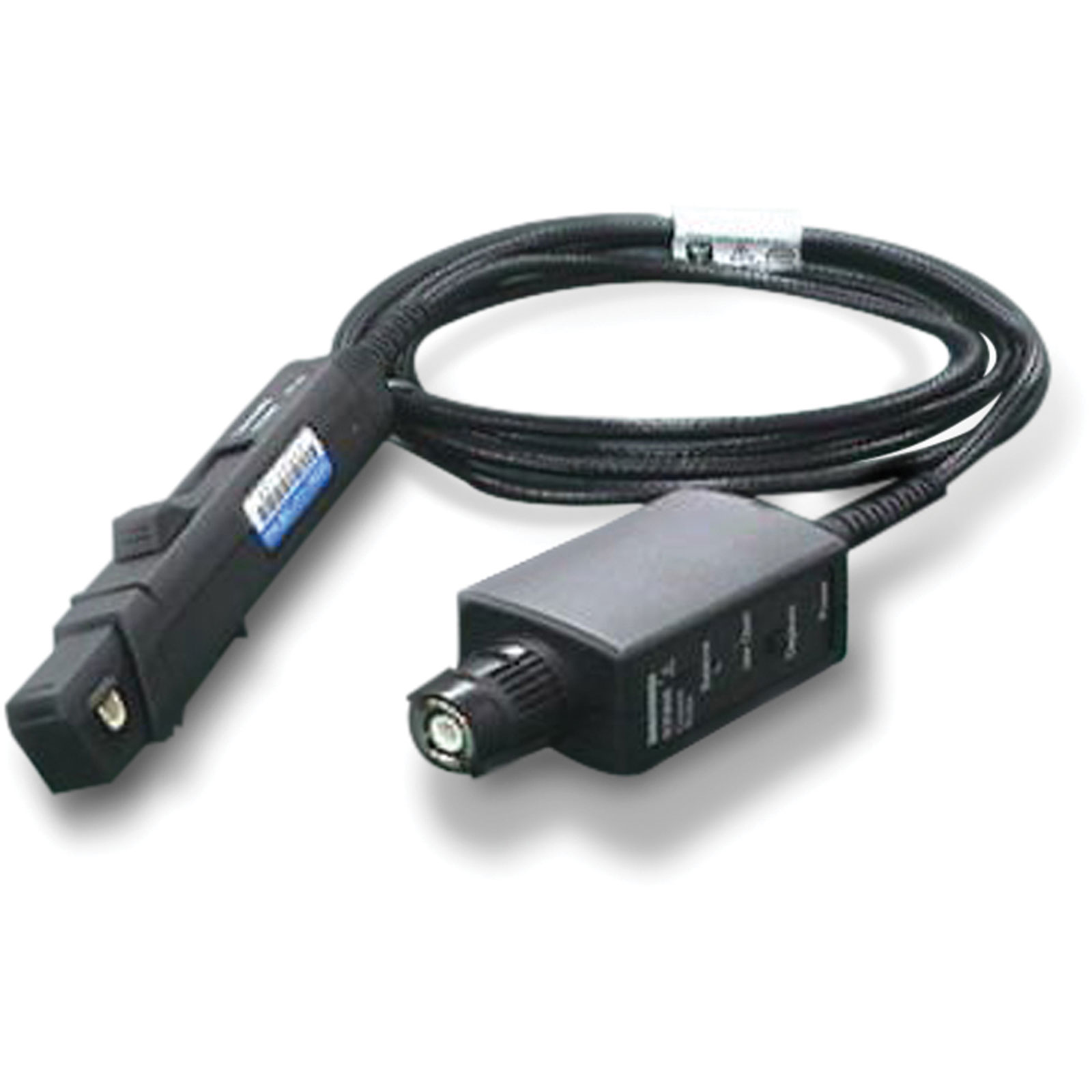

TCP2020 Current Probe; DC Coupled 50 MHZ BW 20 A BNC Interface

The Tektronix TCP2020 is a high performance, easy to use 50MHz AC/DC Current Probe. The TCP2020 is designed for use with any instrument with BNC inputs and >100 kΩ input termination.

The TCP2020 provides a maximum 20A RMS measurement range. This probe also provides excellent accuracy to current levels as low as 10 mA, important for meeting today's challenging current measurement needs.

Applications include Power Supplies, Semiconductor Devices, Electronic Ballasts, Industrial/Consumer Electronics, Mobile Communications, Motor Drives and Transportation Systems.

• >50 MHz bandwidth, <7 ns rise time
• AC/DC measurement capability
• 20A RMS continuous rating (de-rated with frequency)
• 100 A peak pulse current (pulse widths <10 μs)
• 1% DC accuracy (typical)
• One-button degauss
• 150V CAT II (Bare wire), 300V CAT II(Insulated wire)
• External power supply allows use on any 1 MΩ-input measuring instrument
• TCP2020 is powered by an AC adapter.
