VOLTCRAFT PR-80 Differential pressure gauge Air pressure

Name: VOLTCRAFT PR-80 Differential pressure gauge Air pressure
Brand: VOLTCRAFT
Price: 45.64 GBP
Availability: InStock

Standard range

Order Code:

08-1743

Brand: VOLTCRAFT MPN: VC-13101370 EAN-13: 4064161229447

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£45.64

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

430 in stock, despatched in 4 working days

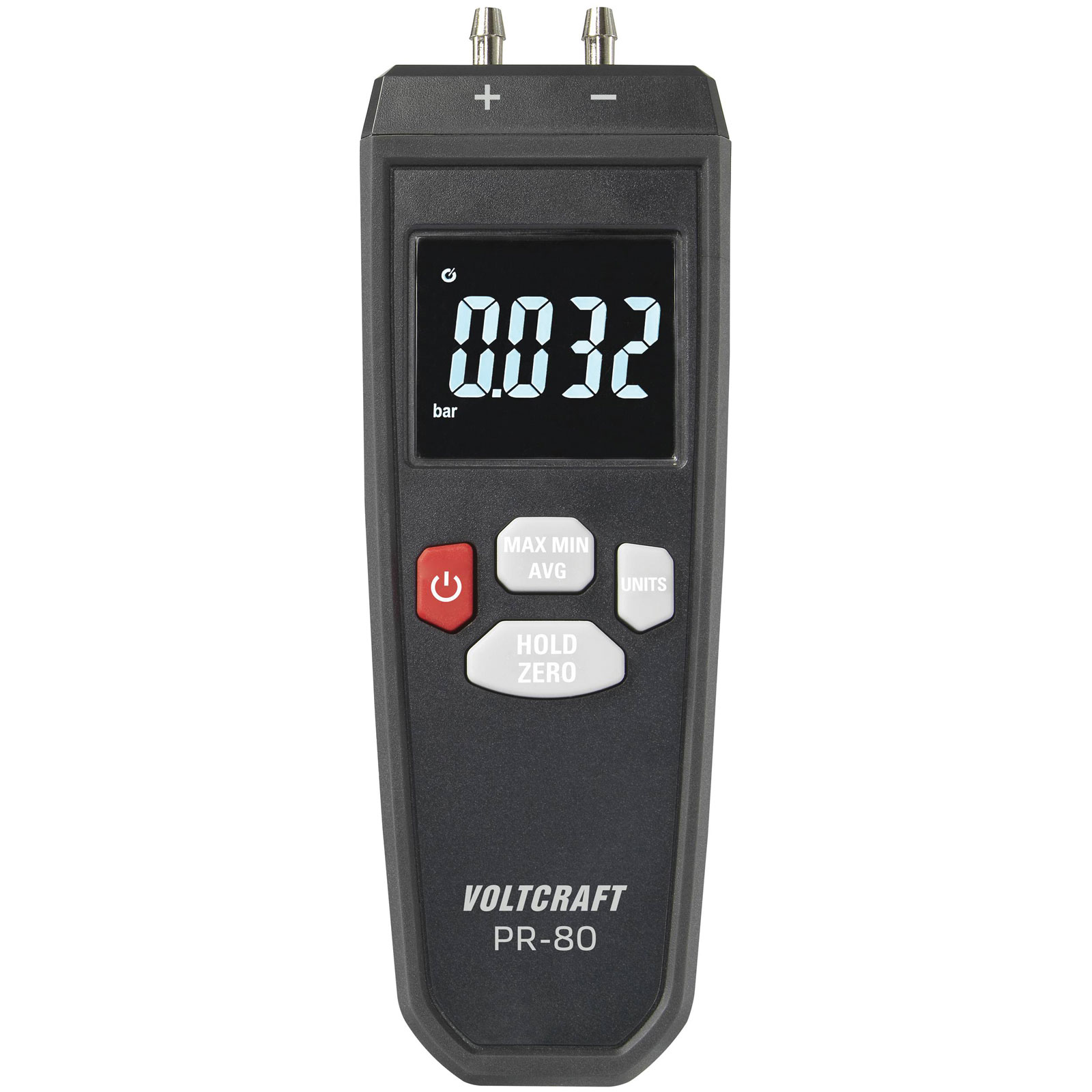

The VOLTCRAFT PR-80 Differential Pressure Gauge measures air pressure with high precision.

Designed for HVAC and cleanroom applications, it offers reliable and accurate readings.

This device is essential for monitoring and maintaining optimal environmental conditions.

Type	Differential pressure gauge
Accuracy	0.3%
Basic accuracy	0.3%
Calibrated to	Manufacturer's standards (no certificate)
Dim	(L x W x H) 48 x 27 x 144 mm
Display range	bar, ozin2, psi, inHg@0℃ , mbar, mmHg@0℃, kPa, kg/cm², inH2O, ftH2O, cmH2O
Height	144mm
IP rating	IP54
Length	48mm
Nominal temperature	23
Operating voltage	4.5V DC
Pick-up time (details)	0.5 sec
Plastic free packaging	Plastic-free packaging
Pneumatic connection	The 4mm pagoda connector can use a silicone tube with an inner diameter of 4mm and an outer diameter of 6mm
Power Consumption	42mA
Power supply (details)	4.5V DC
Reading range	-2.000 - 2.000psi
Reading range - air pressure	-0.137 - 0.137bar
Resolution	0.001 bar, 0.01 oz/in², 0.001 psi, 0.001 inHg, 0.1 mbar (mbar==hpa), 0.1 mmHg, 0.1 mbar, 0.01 kPa, 0.001 kg/cm², 0.01 inH2O, 0.001 ftH2O, 0.1 cmH2O
Sensor	Differential pressure
Temp.	0 - 50 ºC
Unit of measurement	Air pressure
Weight	115g
Width	27mm
