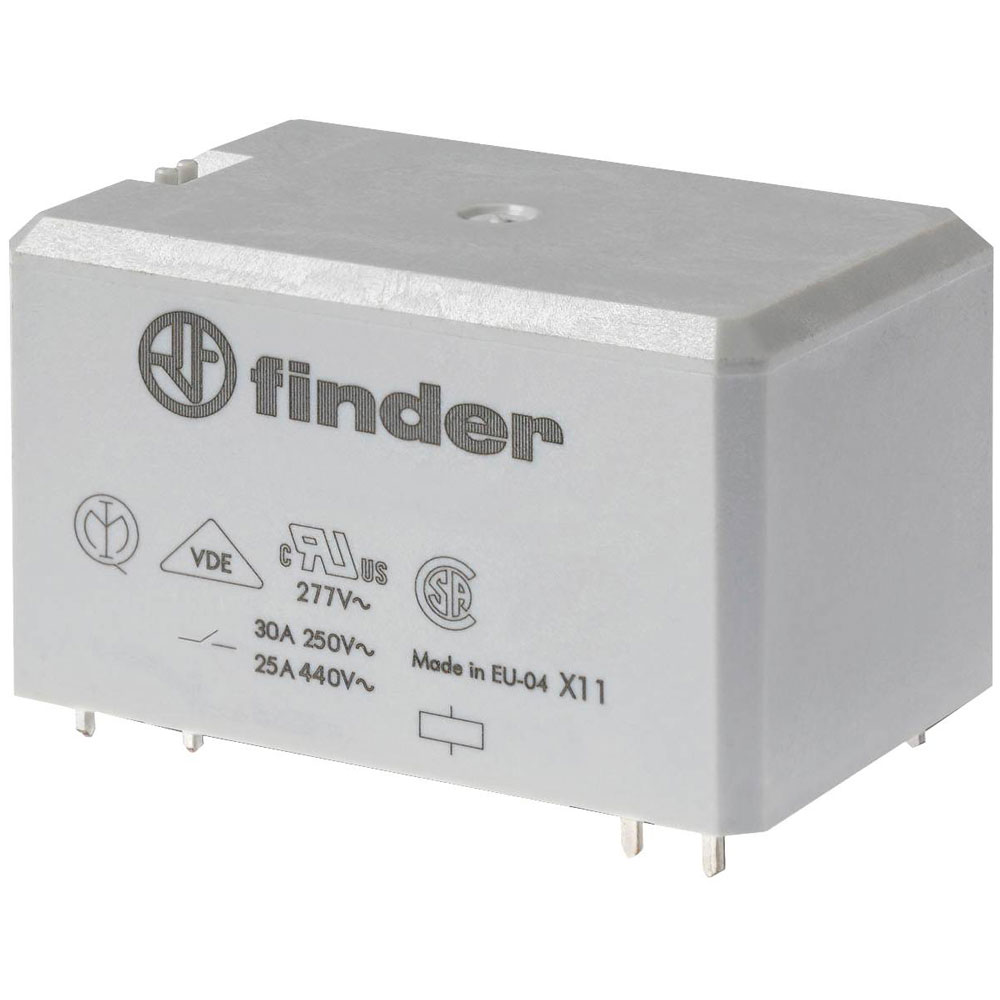

Finder 66.22.8.230.1300 PCB Relay 230V AC 30A AgNi 2NO 4000 Ohm

Finder
Standard range
Order Code:

03-4319

Brand: Finder MPN: 66.22.8.230.1300
Qty Unit Price (Ex VAT)
1+ £12.06
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
8 in stock, despatched in 4 working days

The Finder 66.22.8.230.1300 PCB relay is a printed circuit board relay with a 230 V AC coil and a 30 A switching capacity. It is manufactured by Finder and is suitable for applications requiring high power switching, such as industrial control systems. This relay is ideal for use in installations where reliable electrical performance is critical.
Height 31mm
Type PCB relay
Width 33.50mm
Coil nominal voltage 230V AC
Connection Print
Contact material AgNi
Contact type 2 makers
Depth 51.50mm
Dim (W x H x D) 33.50 x 31 x 51.50 mm
Insulation voltage 400V AC
IP rating IP40
Max. temperature +70°C
Min. temperature -40°C
Misc Attribute 66.22.8.230.1300
Resistance (coil) 4000Ω
RoHS-compliant Yes
Switching current (max.) 30A
