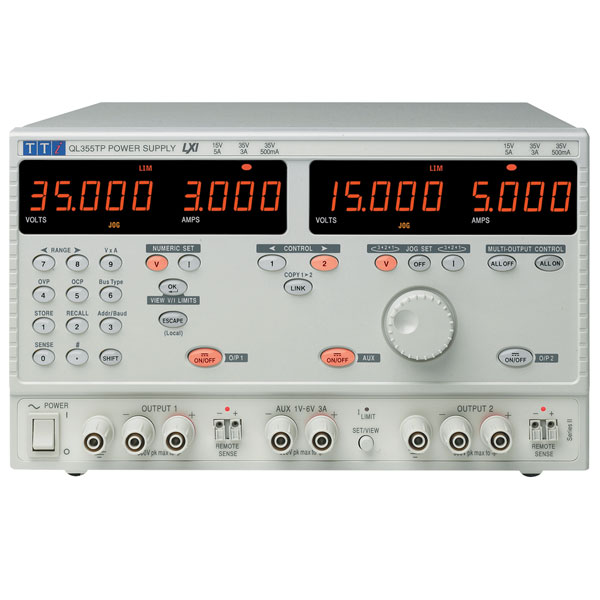

The Aim-TTi QL355TP SII represents the next generation of high
performance laboratory power supplies, maintaining the tradition started with
the PL series in 1980 and continued throughout more than two decades.
The Aim-TTi QL355TP SII offers an unparalleled level of precision.
Voltage and current are controlled using instrumentation quality 16 bit DACs
enabling voltages to be set to 1mV resolution even at full output. Indeed, the
accuracy is sufficient for the QL to be used as a calibration source for some
hand-held DMMs.
The user interface of the QL series has been painstakingly designed to
provide rapid control whilst guarding against any possibility of error. Unlike
other digitally controlled units, the QL series provides both numeric and rotary
control. Illuminated keys and display legends provide instant confirmation of
settings and status.
- Advanced DC power supply
- Dual output model, LAN, RS232 and USB interfaces
- Very high precision, very low noise, excellent dynamics
- Advanced user interface with numeric and rotary control
- 1mV resolution at up to 35V
- Multiple voltage/current ranges for increased flexibility
- Multiple non-volatile memories for power supply set-ups
- Switchable remote sense provides perfect load regulation
- Comprehensive protection including OVP and OCP trips with alarm output
- Compact bench footprint; modular width for rack mounting
- Front and rear mounted terminals
- Full control and read-back of all outputs via the bus
- Auxiliary output of 1-6V/3A
- Manufacturer's part no. Aim-TTi
QL355TP SII
Not recommended for use as a battery charger.
| Type |
Programmable Power Supply |
| Number of Outputs |
2 |
| Power Rating |
228W |
| Dimensions |
280 x 160 x 290mm |
| Output Current Max. |
5A |
| Output Current Min. |
0A |
| Output Voltage Max. |
35V |
| Output Voltage Min. |
0V |
| Supply Voltage Range |
115 / 230V AC |
| Temperature range |
+5 to +40°C |
