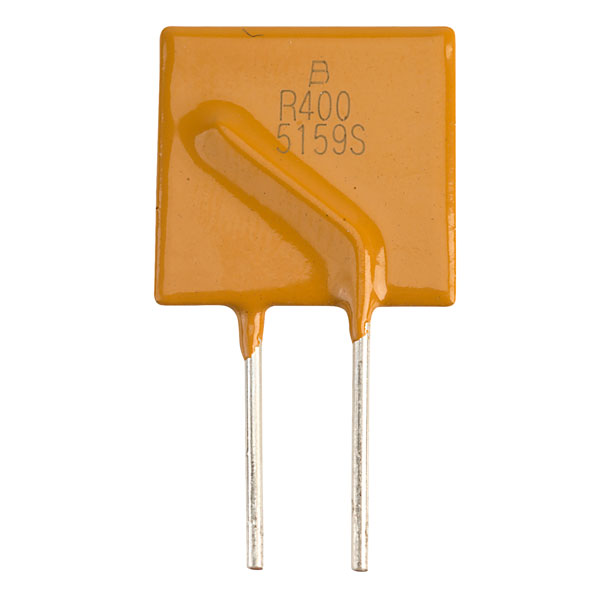

Bourns MF-R400-0-990 4.0A Multifuse

Name: Bourns MF-R400-0-990 4.0A Multifuse
Brand: Bourns
Price: 1.56 GBP
Availability: InStock

Standard range

Order Code:

26-4628

Brand: Bourns MPN: MF-R400

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (11)

Inc VAT

Qty	Was	Unit Price (Ex VAT)
5+	£0.354	£0.311
25+	£0.281	£0.247
100+	£0.238	£0.214

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 5

59 in stock, despatched same dayAdditional quantity lead time 14 days

Product Details
Product Range
Data Sheets
Quick Quote

This Bourns Multifuse is a resettable device that performs like a fuse under overcurrent conditions but will reset when the condition has been removed.

Hold current 4A
Trip current 8A
Housed in a flame retardant UL94V-O epoxy case
Operating temperature –40°C to +85°C
Max. voltage 60VAC/DC rms (to MF-R090), 30V AC/DC rms (MF-R110 to MF-R800)
Size 24.8 x 14.4 x 3mm

Height	24.8mm
Hold Current	4A
Initial Resistance	0.03Ω
Lead Pitch	5.1mm
Length	14.4mm
Max Current Rating	40A
Max Voltage Rating	30V
Package/Case Style	Radial leaded
Trip Current	8A
Trip Time	12.7s
