CamdenBoss CSM40530A 02A 22.6mm Lever Solder Switch

Name: CamdenBoss CSM40530A 02A 22.6mm Lever Solder Switch
Brand: CamdenBoss
Price: 2.58 GBP
Availability: InStock

Standard range

Order Code:

78-2404

Brand: CamdenBoss MPN: CSM40530A

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (10)

Inc VAT

Qty	Unit Price (Ex VAT)
2+	£1.29
26+	£0.996
100+	£0.845

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

161 in stock, despatched same dayAdditional quantity lead time 4 months

Product Details
Product Range
Data Sheets
Quick Quote

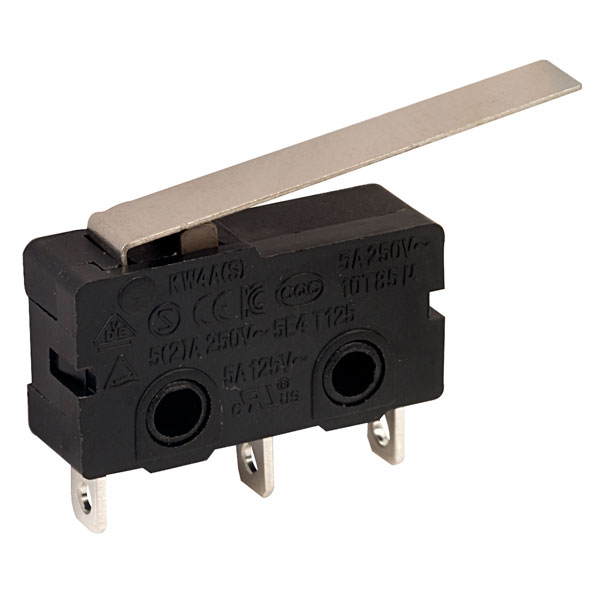

Type V4 miniature 02a 22.6mm lever solder microswitches from CamdenBoss with SPDT switching and a long life coil spring mechanism.

Lever actuator
Contact voltage 250V
Contact current 5A
Silver contact
Solder lug terminal
-20ºC to +70ºC operating temperature
Dimensions 20.1 x 6.5 x 10.8mm
Anti solder wicking
Manufacturer's part CSM40530A
