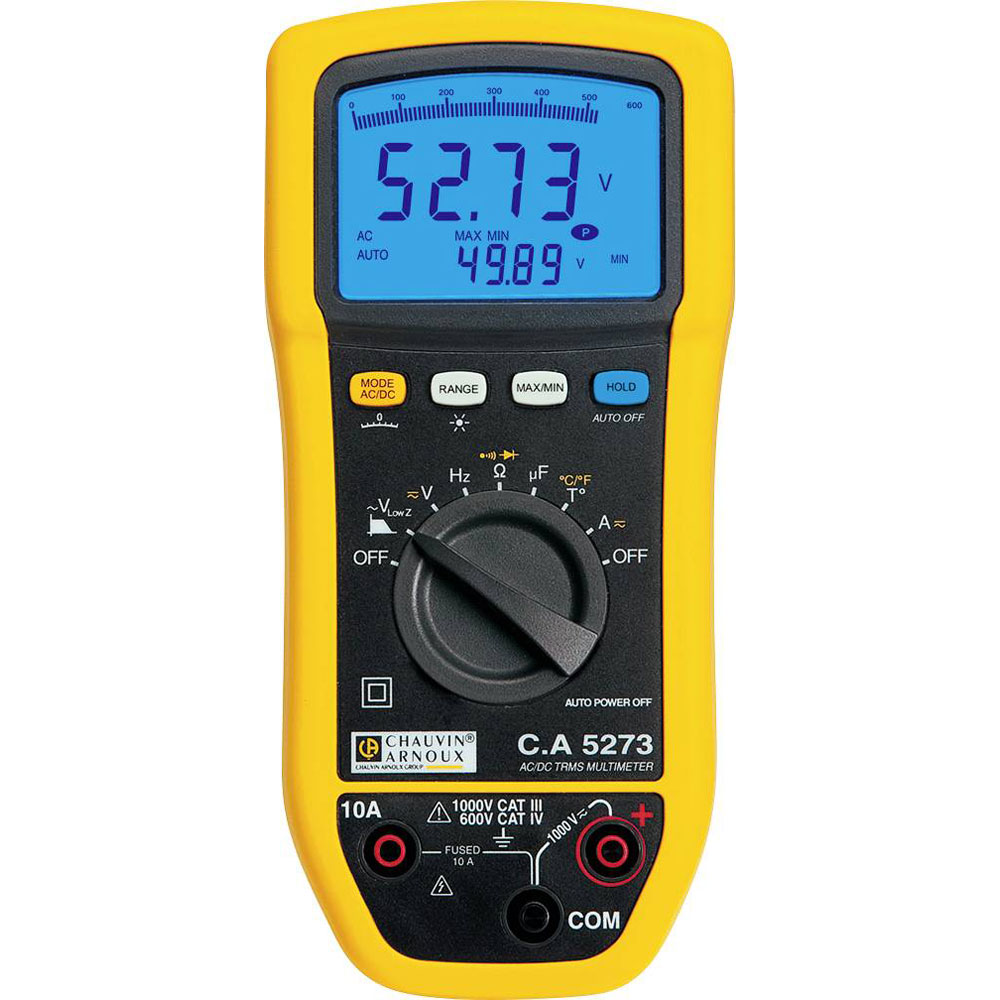

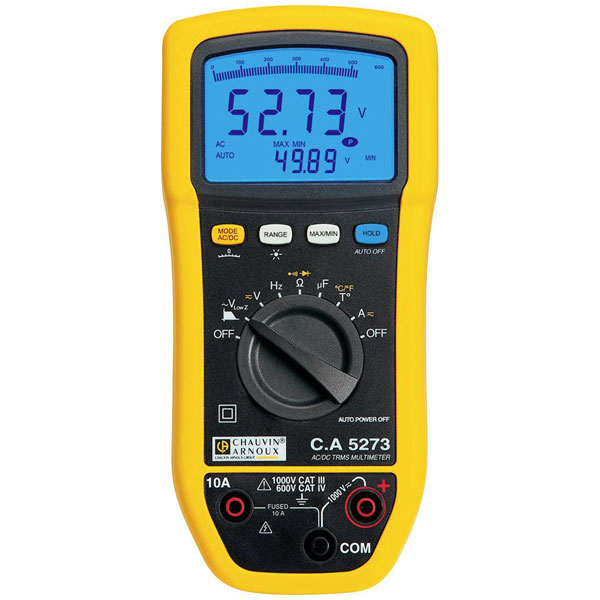

Chauvin Arnoux P01196773 C.A 5273 digital Multimeter IP54 CAT IV 600 V

Chauvin Arnoux
Order Code:

02-2957

Brand: Chauvin Arnoux MPN: P01196773
Qty Was Unit Price (Ex VAT)
1+ £256.43 £251.19
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched same dayAdditional quantity lead time 7 days

The Chauvin Arnoux C.A 5273 is a TRMS digital multimeter featuring splashproof protection with an IP54 rating, suitable for CAT III 1000 V and CAT IV 600 V environments. It offers a 6000-count display, making it ideal for precise voltage and current measurements in various settings. Typical applications include professional electrical work, troubleshooting, and maintenance tasks.
Type Handheld multimeter
A AC reading range (min.) 0.001A
A DC reading range (max.) 10A
AC resistance 10MΩ
Amperage reading range AC (max.) 10A
Amperage reading range DC (min.) 0.001A
Calibrated to Manufacturer's standards (no certificate)
Current reading AC/DC
DC Resistance 10MΩ
Dim (L x W x H) 45 x 90 x 190 mm
Display Digital
Display (counts) 6000
Frequency Range 40 Hz -3kHz
Frequency reading range 10 Hz - 50kHz
Height 190mm
Length 45mm
Measurement type (details) True RMS
Misc Attribute C.A 5273
Power supply (details) 9 V battery
Reading range - capacity 0.1 nF 60mF
Reading range - resistance 0.1 Ω - 60MΩ
Temperature reading range (max.) +1200°C
Temperature reading range (min.) -50.9°C
V AC reading range (max.) 1000V
V AC reading range (min.) 0.1mV
Voltage DC reading range (max.) 1000V
Voltage metering AC/DC
Voltage reading range DC (min.) 0.1mV
Weight 400g
Width 90mm
