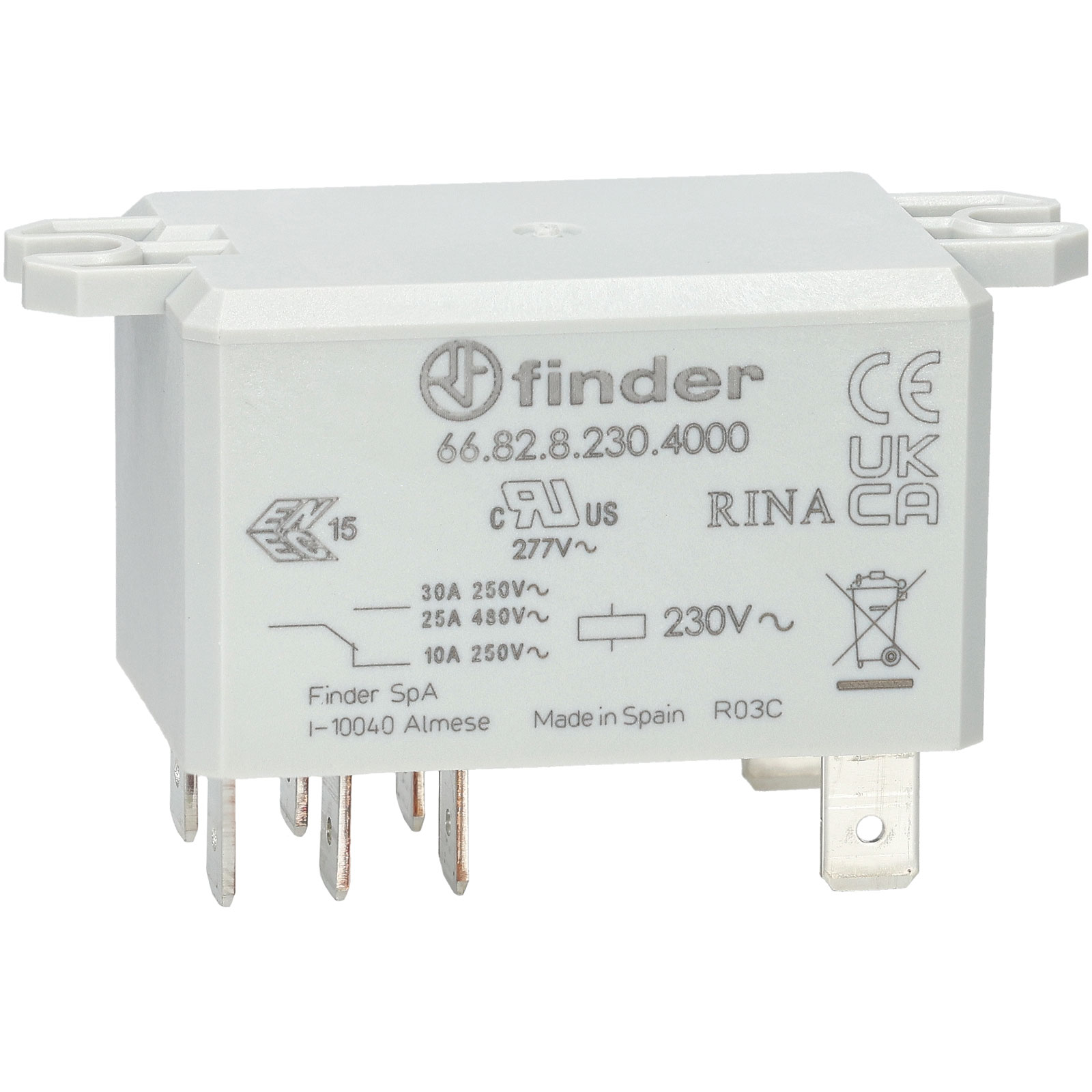

Finder 66.82.8.230.4000 230V Relay DPDT AC 30A (Flange Mounting) 66.82

Finder
Order Code:

61-6378

Brand: Finder MPN: 66.82.8.230.4000
Qty Unit Price (Ex VAT)
1+ £18.79
25+ £12.91
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
151 in stock, despatched same dayAdditional quantity lead time 7 days

Finder 66.82.8.230.4000 230V Relay DPDT AC 30A (Flange Mounting) 66.82 - Type 66.82 - Faston 250 connections and Flange mount with reinforced insulation between coil and contacts according to EN 60335-1; 8 mm creepage and clearance distances, AC coils & DC coils with Cadmium Free option available.

For applications such as: Power generators, Industrial washing machines, burners, boilers and furnaces. air conditioners, hoists and cranes, back up generators and industrial motors.


  • Contact configuration: 2 CO (DPDT)
  • Rated current/Maximum peak current: 30/50 (NO) - 10/20 (NC)
  • Rated voltage: Maximum switching voltage: 250/440
  • Rated load AC1: 7500 (NO) - 2500 (NC)
  • Rated load AC15 (230 V AC): 1200 (NO)
  • Single phase motor rating (230 V AC): 1.5 (NO)
  • Breaking capacity DC1: 24/110/220 V:25/0.7/0.3 (NO)
Coil Voltage 0.8Un/0.5Un
Type V Relay
Contact Configuration 2 CO (DPDT)
Length 68.5mm
Width 33.5mm
Mounting Type PCB
Coil Power 3.6/1.7
Operating Temperature -40 to +70°C
Switching Power 1000VA
